Removing 2/3-Split Folding Rear Backrest

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove the left trim panel on the 2/3-split folding rear seat.

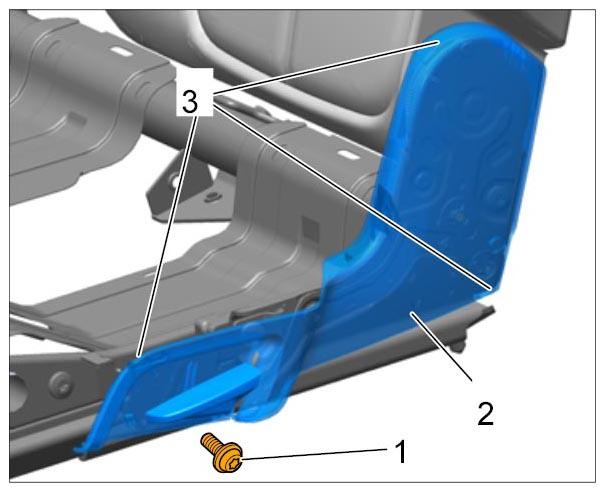

1. 1.1. Unscrew the fastening screw -1- on the seat trim -2- at the left.
  Press the control lever up to do this.

  Fig 1: Identifying Left Trim Panel On 2/3-Split Folding Rear Seat And Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Carefully unclip the trim panel -2- at the retaining lugs -3- on the seat.
3. 1.3. Carefully pull the trim panel up and remove it.

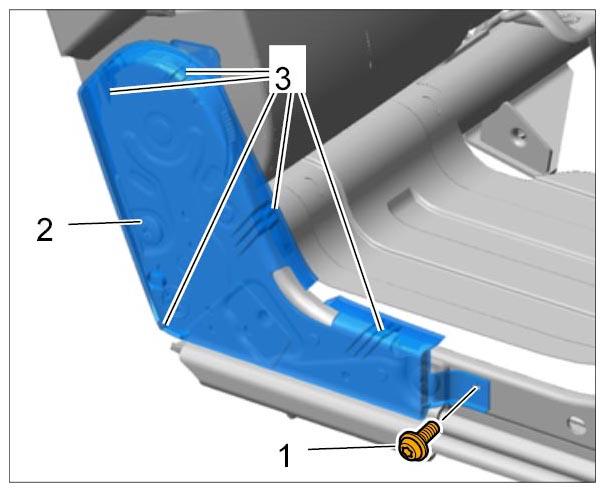

Unscrew fastening screw -1- on the seat trim -2- at the right.

Fig 2: Identifying Right Trim Panel On 2/3-Split Folding Rear Seat And Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully unclip the trim panel -2- at the brackets -3- and lift it up and off.
Remove the shaft for 2/3-split folding backrest adjustment.

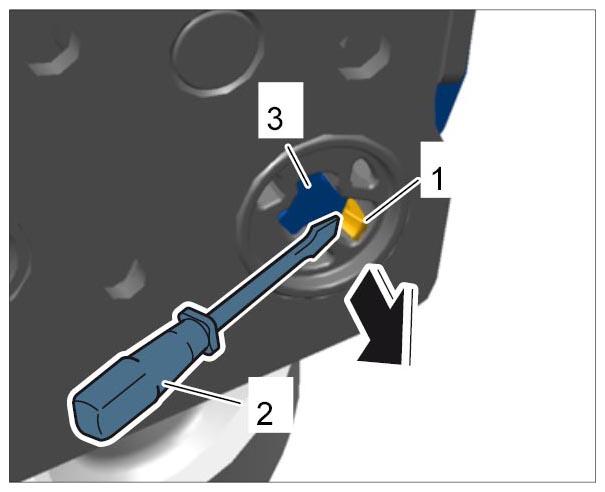

1. 4.1. Loosen the retaining lugs -1- on the adjustment device using a suitable tool -2- and press the shaft -3- out from the other side.

  Fig 3: Removing Backrest Adjustment Shaft - Step 1
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

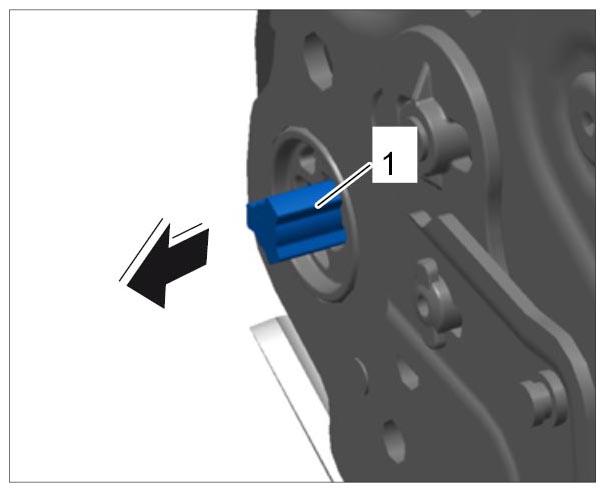

2. 4.2. Pull the shaft -1- out of the seat frame -arrow- .

  Fig 4: Removing Backrest Adjustment Shaft - Step 2
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Removing the rear belt lock at the center. → 692519 REMOVING AND INSTALLING REAR BELT LOCK

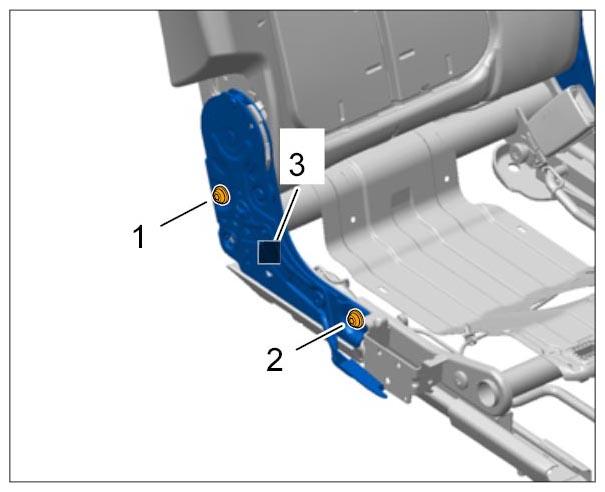

Unscrew the fastening screws -1-3- on the 2/3-split folding backrest at the right.

Fig 5: Identifying Right Fastening Screws On 2/3-Split Folding Backrest And Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

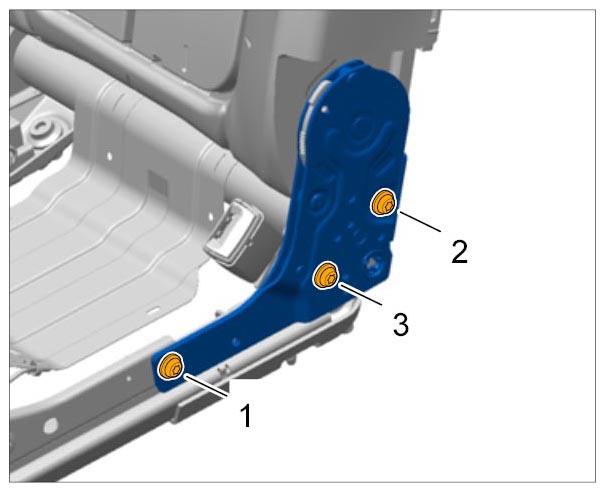

Unscrew the fastening screws -1-3- on the 2/3-split folding backrest at the left.

Fig 6: Identifying Left Fastening Screws On 2/3-Split Folding Backrest And Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
