Removing 1/3-Split Folding Rear Backrest

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove seat trim on the right.
    1. 1.1. Unscrew fastening screw -1-  on seat trim -2-  at the right.

      Press the control lever up to do this.

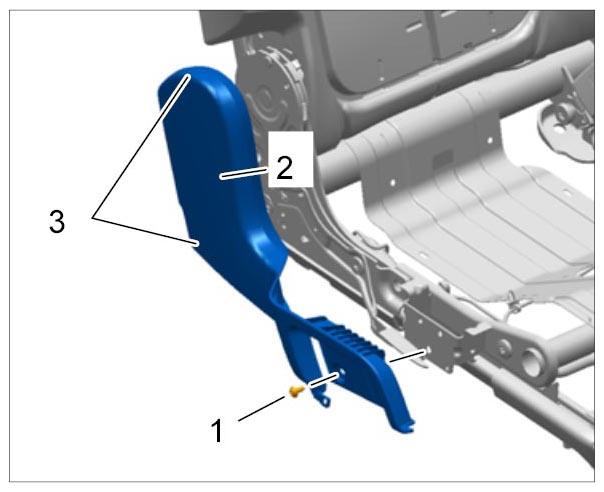

      Fig 1: Identifying Right Trim On 1/3-Split Folding Rear Seat And Screw
      G09940916Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 1.2. Carefully unclip the trim panel at the retaining lugs -3-  on the seat.
    3. 1.3. Carefully pull the trim panel up and remove it.
  2. Remove seat trim on the left.

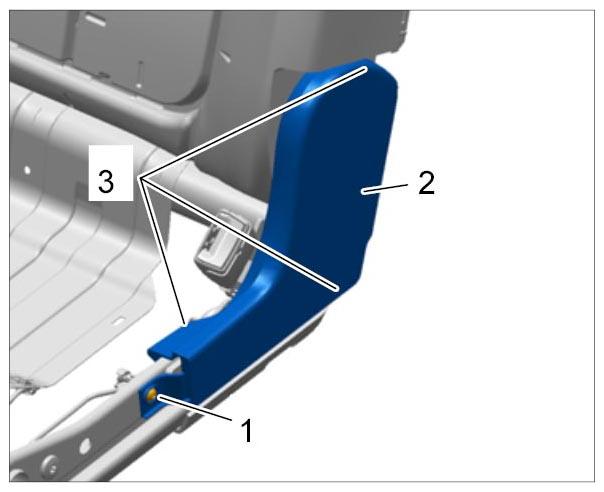

    Fig 2: Identifying Left Trim Panel On 1/3-Split Folding Rear Seat And Screw
    G09940917Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1. Unscrew the fastening screw -1-  on the seat trim -2-  at the left.
    2. 2.2. Carefully unclip the trim panel at the retaining lugs -3-  on the seat.
    3. 2.3. Carefully pull the trim panel up and remove it.
  3. Remove the shaft for 1/3-split folding backrest adjustment.
    1. 3.1. Loosen the retaining lugs -1-  on the adjustment device using a suitable tool -2-  and press the shaft -3-  out from the other side.

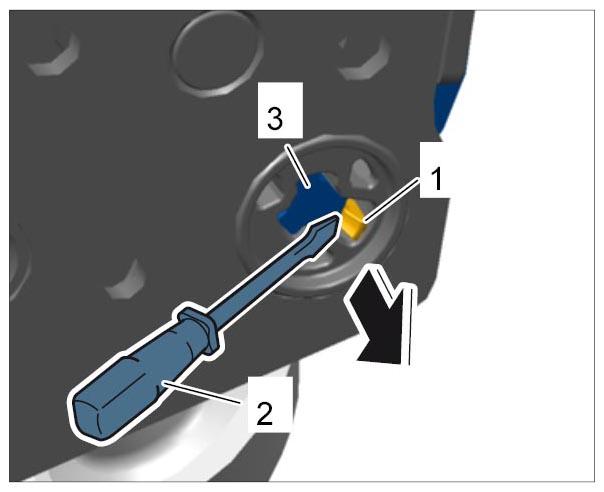

      Fig 3: Removing Backrest Adjustment Shaft - Step 1
      G09940918Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 3.2. Pull the shaft -1-  out of the seat frame -arrow-  .

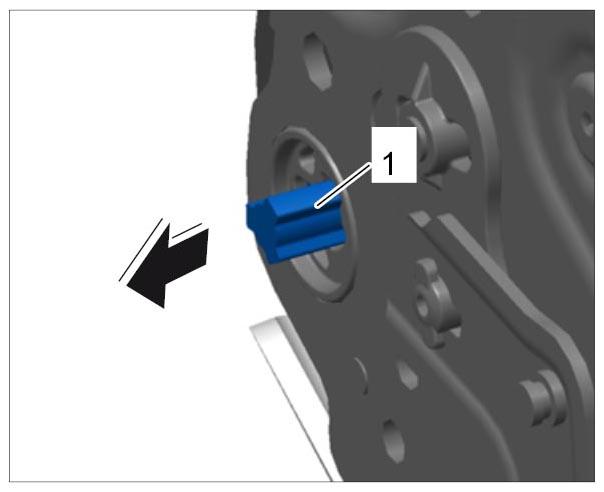

      Fig 4: Removing Backrest Adjustment Shaft - Step 2
      G09940919Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Remove the rear right belt lock. → 692519 REMOVING AND INSTALLING REAR BELT LOCK
  5. Unscrew the fastening screws -1-3-  on the 1/3-split folding backrest at the right.

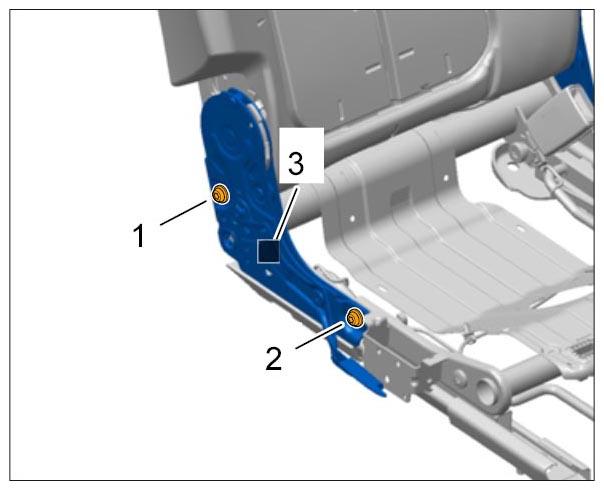

    Fig 5: Identifying Right Fastening Screws On 1/3-Split Folding Backrest And Screw
    G09940920Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Unscrew the fastening screws -1-3-  on the 1/3-split folding backrest at the left.

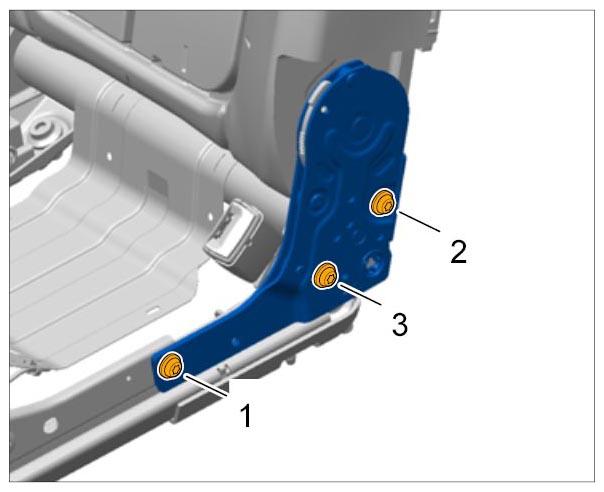

    Fig 6: Identifying Left Fastening Screws On 1/3-Split Folding Backrest And Screw
    G09940921Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Take the 1/3-split folding backrest down off the seat.
