Removing Motor For Air Cushion

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

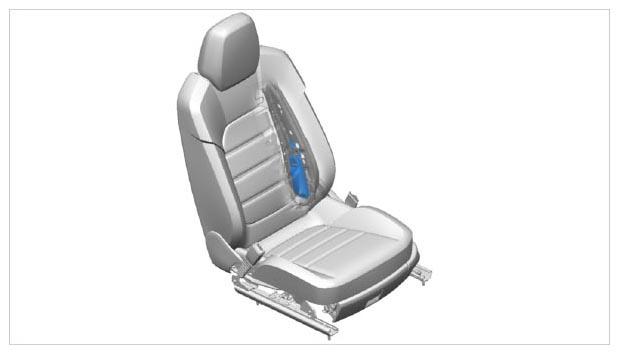

Fig 1: Installation Position Of Motor For Air Cushion

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew two fastening screws from the backrest air cushion. → 721719 REMOVING AND INSTALLING AIR CUSHION FOR FRONT BACKREST
Release fixing clip -2- for the motor -1- .

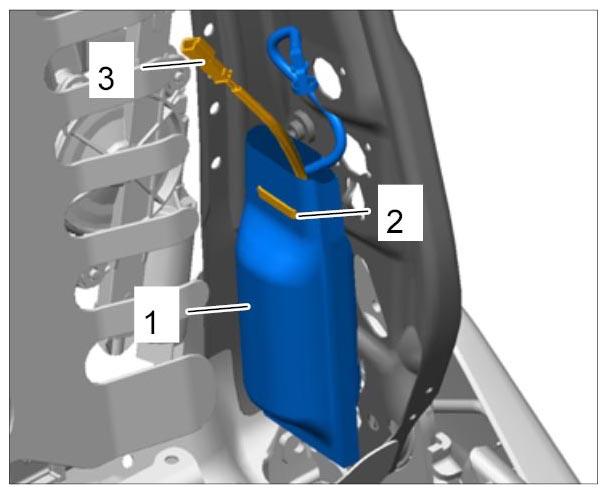

Fig 2: Identifying Motor For Air Cushion And Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect electric plug connection -3- .
Release pressure line (blue) -3- from the control valve and pull it off.

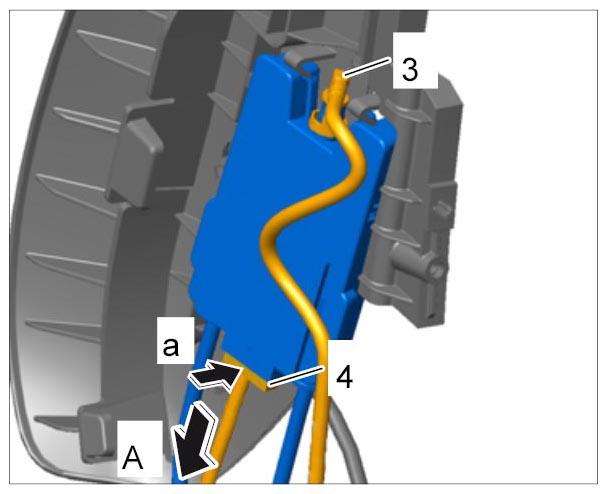

Fig 3: Disconnecting Pressure Line And Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
