Installing Motor For Air Cushion

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clip in fixing clip -2-  for the motor -1-  .

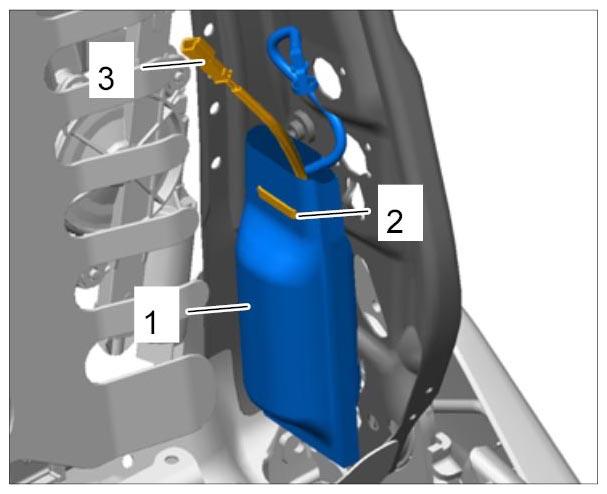

    Fig 1: Identifying Motor For Air Cushion
    G09940914Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Plug in electric plug connection -3-  .
  3. Connect pressure line (blue) -3-  to the control valve.

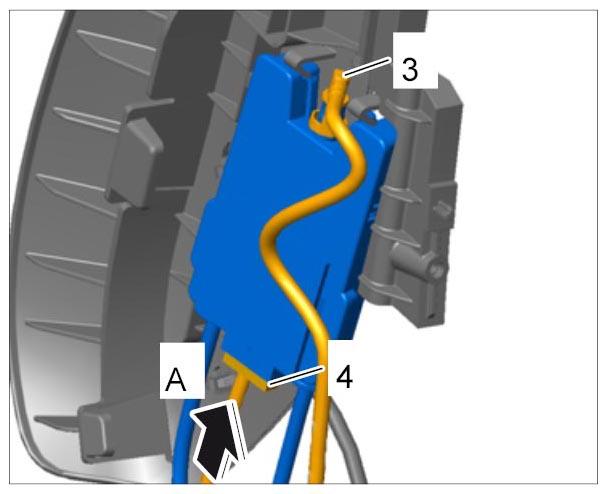

    Fig 2: Connecting Pressure Line And Connector
    G09940915Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Screw in two fastening screws for the backrest air cushion. → 721719 REMOVING AND INSTALLING AIR CUSHION FOR FRONT BACKREST
