Removing Control Valve For Air Cushion

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release and disconnect pressure line (red) -1-  under the seat.

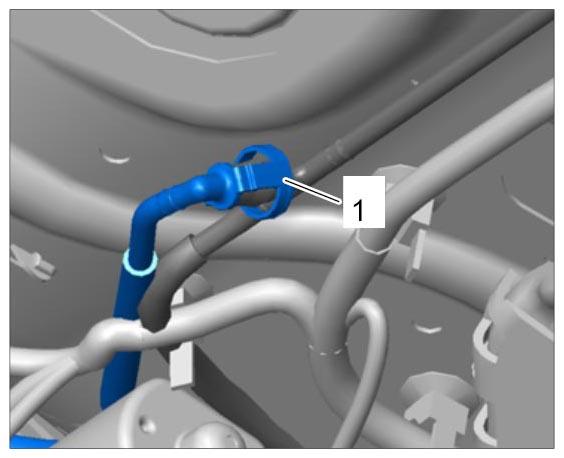

    Fig 1: Disconnecting Pressure Line Under Seat
    G09940903Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Pull pressure line (red) -1-  through between the backrest frame and seat.
  3. Release control valve pressure line (green) -3-  from the air cushion pressure line (green) -2-  and disconnect it.

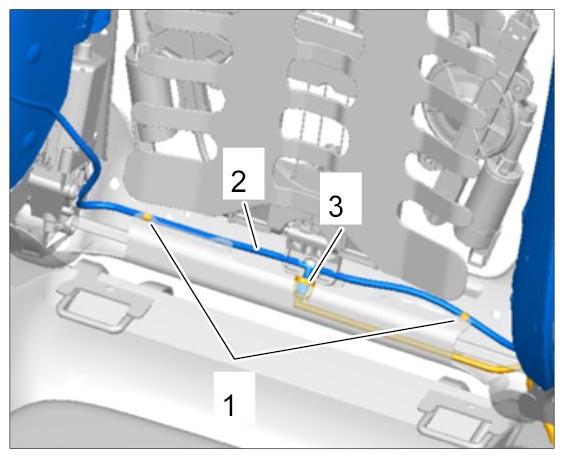

    Fig 2: Identifying Pressure Line For Air Cushion
    G09940904Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Unscrew fastening screws from the backrest air cushion. → 721719 REMOVING AND INSTALLING AIR CUSHION FOR BACKREST
  5. Release locking mechanisms -2-  on the control valve -1-  (-A-  ) and remove control valve -B-  .

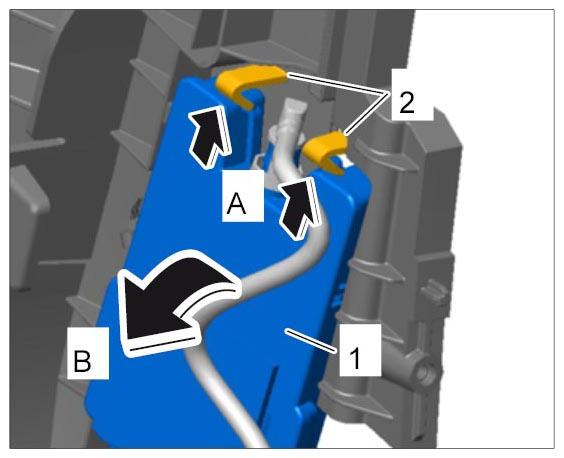

    Fig 3: Disconnecting Control Valve
    G09940905Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Release pressure line (blue) -3-  from the control valve and disconnect it.

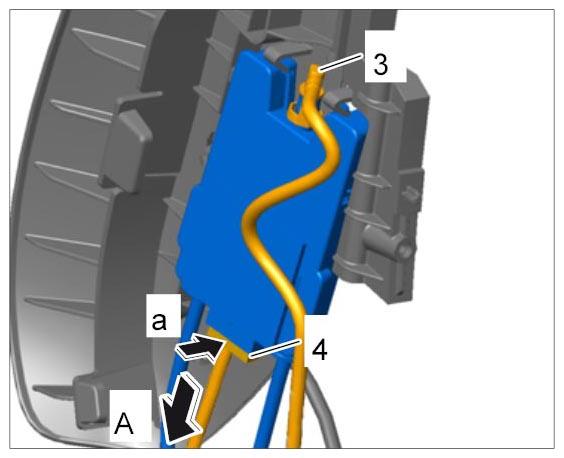

    Fig 4: Disconnecting Pressure Line And Connector
    G09940906Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Release electric plug connection -4-  (-a-  ) and disconnect it -A-  .
