Installing Control Valve For Air Cushion

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect pressure line (blue) -3-  to the control valve.

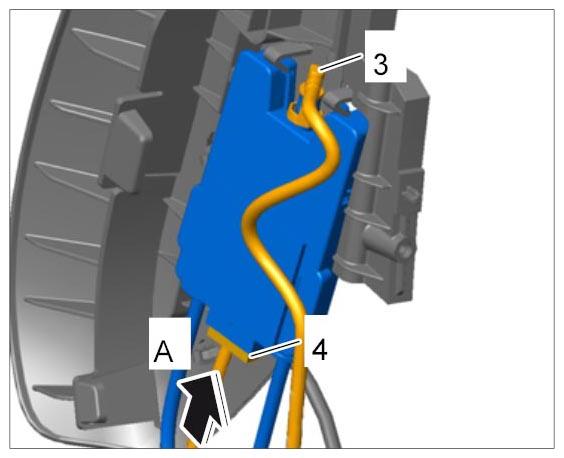

    Fig 1: Connecting Pressure Line And Connector
    G09940907Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Plug in electric plug connection -4-  (-A-  ) until the plug connection engages securely.
  3. Fit control valve -1-  (-A-  ) and engage it in the locking mechanisms -2-  .

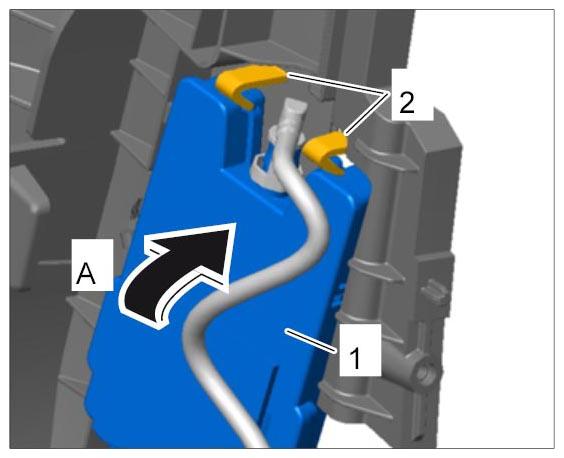

    Fig 2: Securing Control Valve
    G09940908Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Tighten fastening screws for the backrest air cushion. → 721719 REMOVING AND INSTALLING AIR CUSHION FOR BACKREST
  5. Connect control valve pressure line (green) -3-  to the air cushion pressure line (green) -2-  .

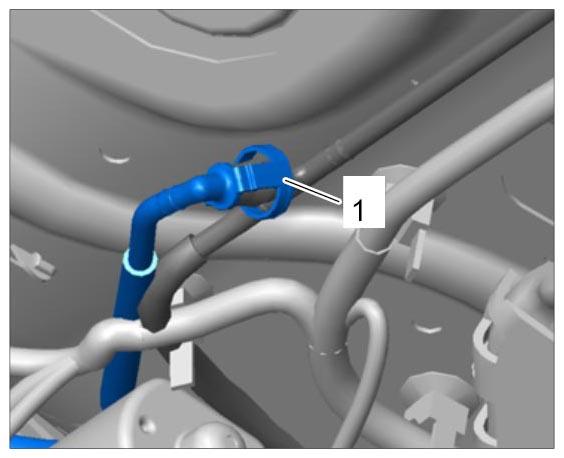

    Fig 3: Identifying Pressure Line
    G09940909Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Pull pressure line (red) -1-  through between the backrest frame and seat.
  7. Fit pressure line (red) -1-  under the seat.

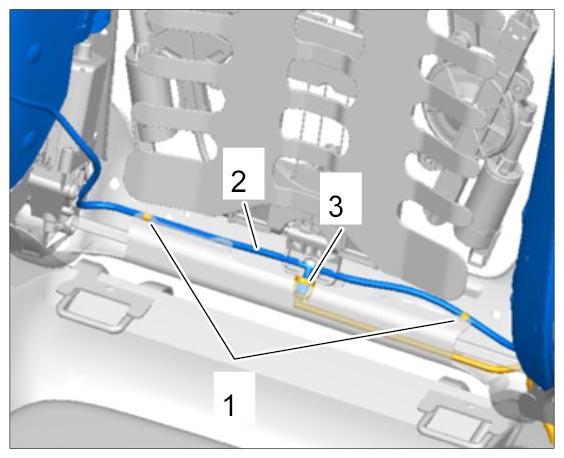

    Fig 4: Identifying Pressure Line Under Seat
    G09940910Courtesy of PORSCHE CARS NORTH AMERICA, INC.
