Removing Lumbar Support

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

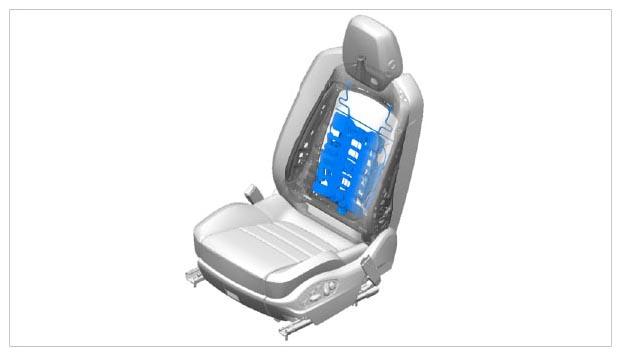

Fig 1: Identifying Lumbar Support Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

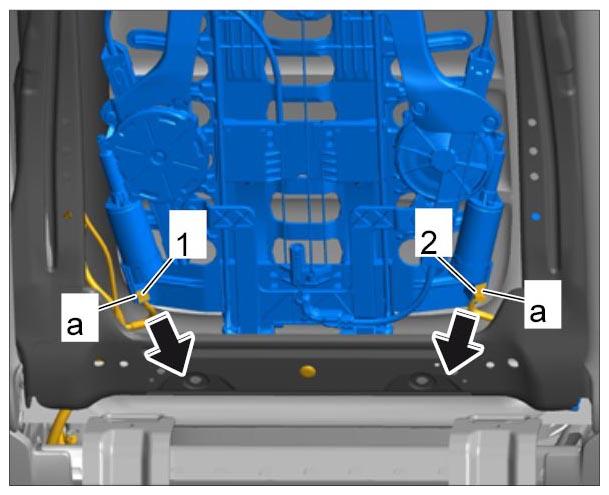

Release and disconnect electric plug connections for lumbar support adjustment motor -1- and lumbar curvature motor -2- (-a- ).

Fig 2: Disconnecting Connectors For Motors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

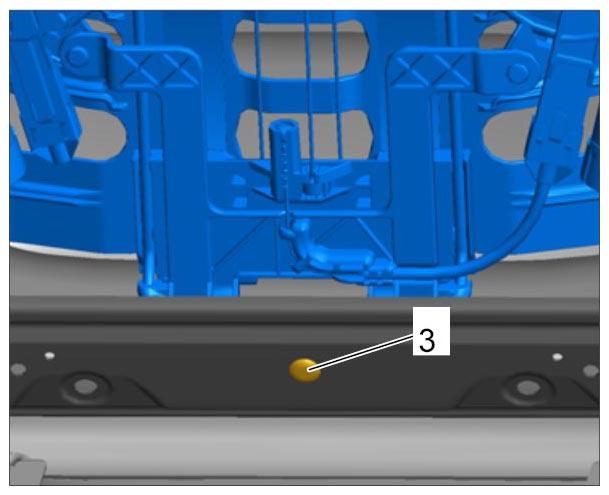

Drill out blind rivets -3- using a suitable drill bit.

Fig 3: Drilling Out Blind Rivets
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

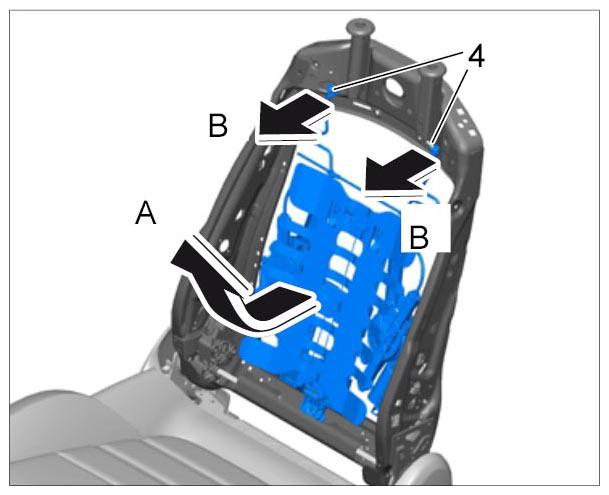

Fold the lumbar support up -arrow A- and press the retaining bars -4- at the left and right together.
Disengage retaining bars -4- from the backrest frame -arrow B- .

Fig 4: Removing Lumbar Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the complete lumbar support from the backrest frame.
