Installing Lumbar Support

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press the retaining bars -4-  together and engage them in the backrest frame -arrow A-  .
  2. Fold down lumbar support -arrow B-  .

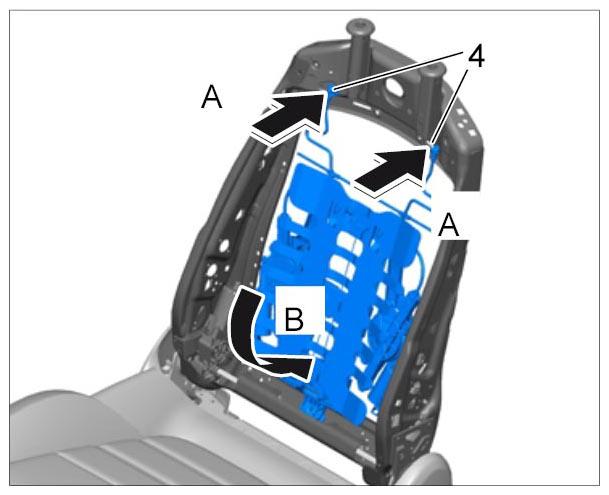

    Fig 1: Positioning Lumbar Support
    G09940878Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Join the lumbar support and backrest frame using a new blind rivet -3-  .

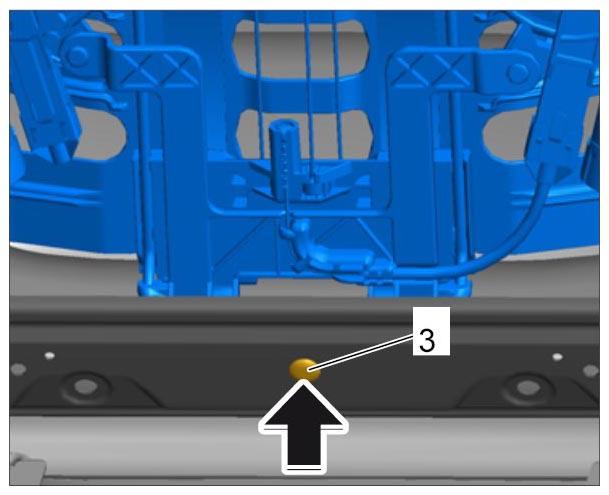

    Fig 2: Securing Lumbar Support And Backrest Frame
    G09940879Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Plug in electric plug connections for lumbar support adjustment motor -1-  and lumbar curvature motor -2-  until they engage securely.

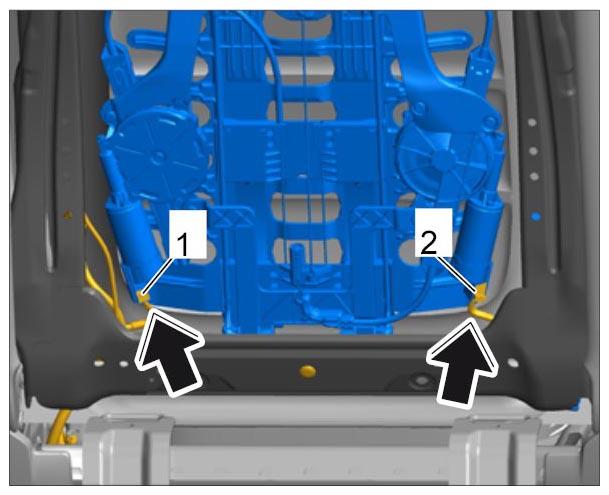

    Fig 3: Plugging Connectors For Motors
    G09940880Courtesy of PORSCHE CARS NORTH AMERICA, INC.
