Removing Cover For Rear Backrest

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle .
Naturally, some steps also have to be performed on the opposite side of the vehicle as well .

Information

To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

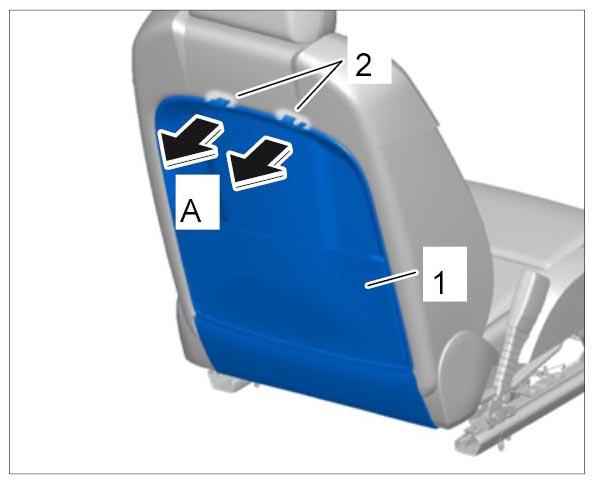

Loosen the top fixing clips -2- on the backrest cover -1- (-A- ).

Fig 1: Loosening Cover For Backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

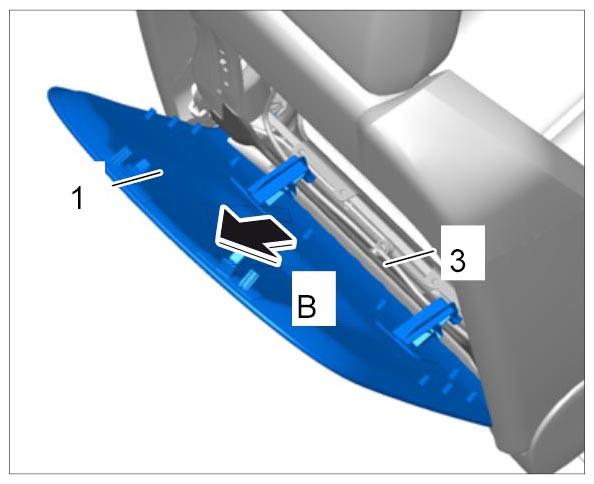

Pull cover for backrest -1- up out of the bracket -3- (-B- ).

Fig 2: Removing Cover For Backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

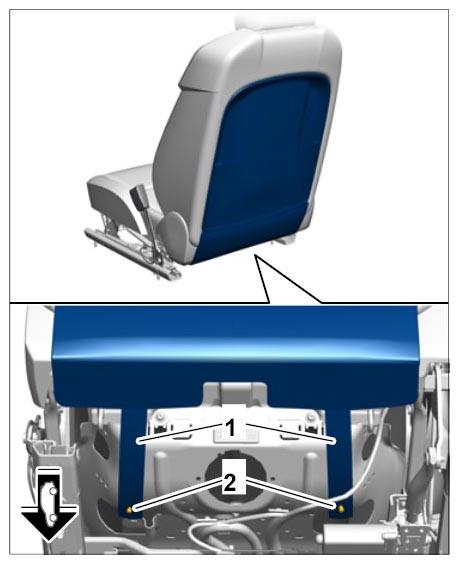

Guide tension straps -1- out of the retaining lugs -2- .

Fig 3: Loosening Tension Straps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove cover for backrest.
