Removing Backrest Frame

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

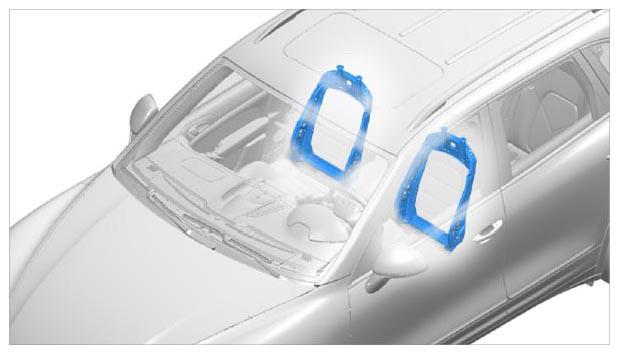

Fig 1: Identifying Backrest Frame Installation Position
G09940867Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove lumbar support. → 723419 REMOVING AND INSTALLING LUMBAR SUPPORT
  2. Remove guide elements for headrest.
    1. 2.1. Release guide element at the right -1-  and left -2-  using a screwdriver -a-  and pull them up and out.

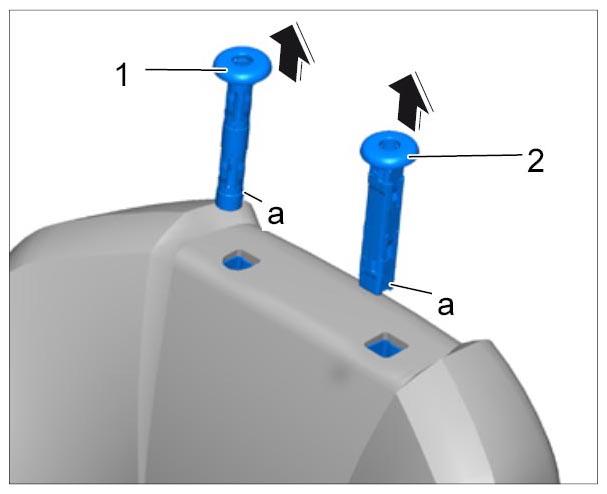

      Fig 2: Removing Guide Elements
      G09940868Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove air cushion for backrest. → 721719 REMOVING AND INSTALLING AIR CUSHION FOR FRONT BACKREST
  4. Remove motor for air cushion. → 723919 REMOVING AND INSTALLING MOTOR FOR AIR CUSHION
  5. Remove side airbag. → 696319 REMOVING AND INSTALLING FRONT SIDE AIRBAG
  6. Unclip fixing clips on the wire harness and remove wire harness. → 975619 REMOVING AND INSTALLING WIRING FOR BACKREST
