Installing Backrest Frame

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position wire harness and clip the clips into the backrest frame. → 975619 REMOVING AND INSTALLING WIRING FOR BACKREST
  2. Install side airbag. → Installing Side Airbag
  3. Install motor for air cushion. → 723919 REMOVING AND INSTALLING MOTOR FOR AIR CUSHION
  4. Install air cushion for backrest. → 721719 REMOVING AND INSTALLING AIR CUSHION FOR FRONT BACKREST

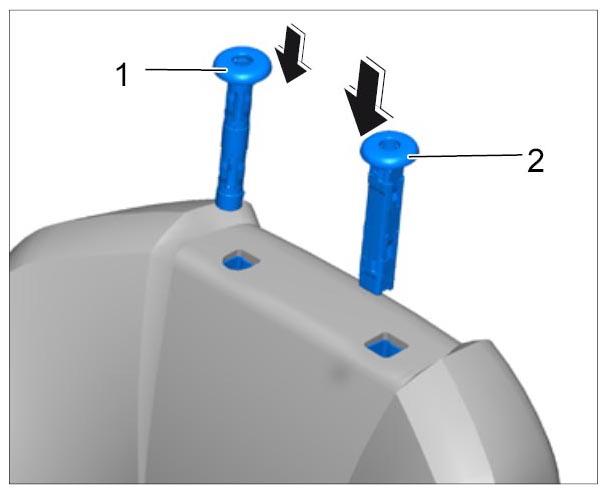

  5. Install guide element at the right -1-  and left -2-  for the headrests.
    Fig 1: Installing Guide Elements
    G09940869Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Install lumbar support. → 723419 REMOVING AND INSTALLING LUMBAR SUPPORT
