Technical Values
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

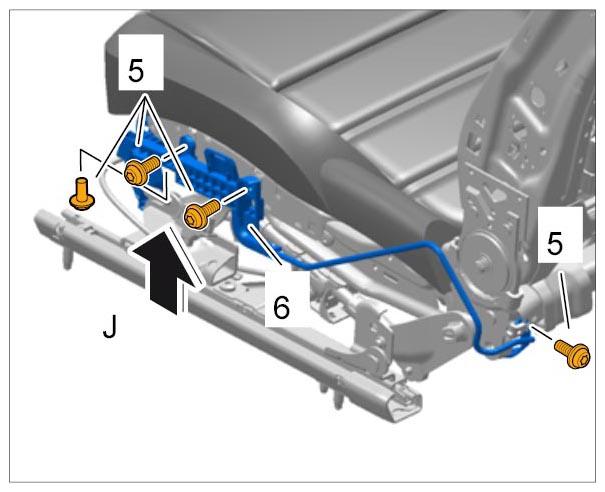

| Fastening screw securing side bracket to seat | Item 5 | Tightening torque | 7.5 Nm (5.5 ftlb.) | +/-0.5 Nm (+/- 0.5 ftlb.) | |
|
Securing bracket at the sides |
|||||

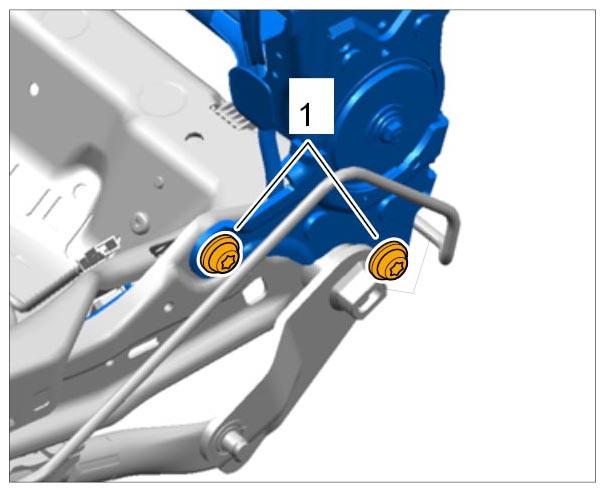

| Fastening screws securing backrest frame to seat frame | Item 1 | Tightening torque | 33 Nm (24 ftlb.) | +/-3 Nm (+/- 2 ftlb.) | |
|
Removing backrest frame |
|||||
