Removing Air Cushion For Backrest

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove tie-wrap -1-  from the air cushion pressure line (green) -2-  .

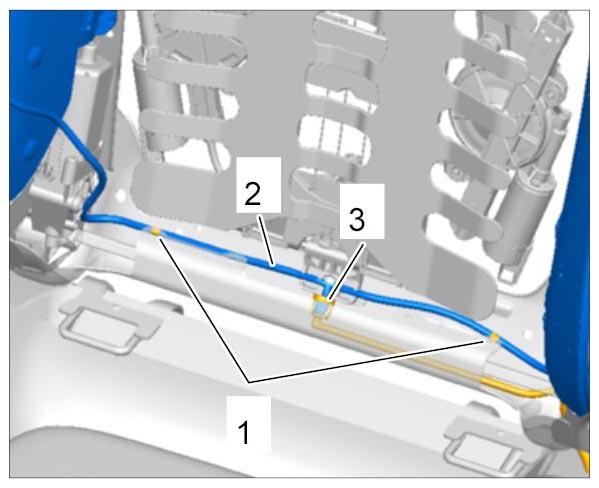

    Fig 1: Identifying Pressure Line And Tie-Wrap
    G09940852Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release control valve pressure line (green) -3-  from the air cushion pressure line (green) -2-  and pull it off.

    Electric plug connection on servo motor

  3. Unscrew fastening screws -1-  on the air cushion and remove air cushion -2-  .

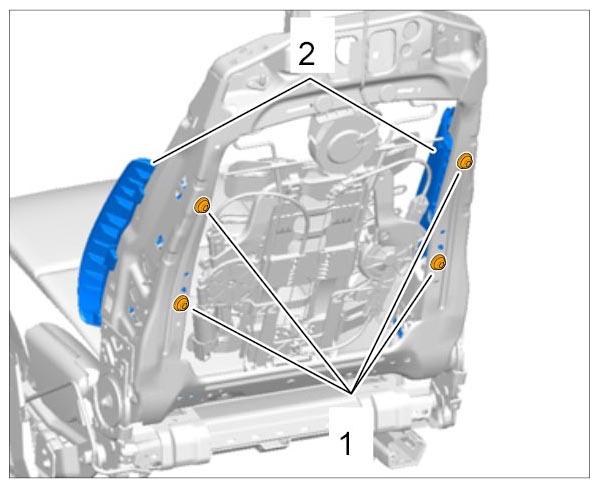

    Fig 2: Identifying Screws Of Air Cushion For Backrest
    G09940853Courtesy of PORSCHE CARS NORTH AMERICA, INC.
