Installing Air Cushion For Backrest

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit air cushion -2-  and tighten fastening screws -1-  to Tightening torque 2.5 Nm (2 ftlb.) +/-0.3 Nm (+/-0.2 ftlb.)  .

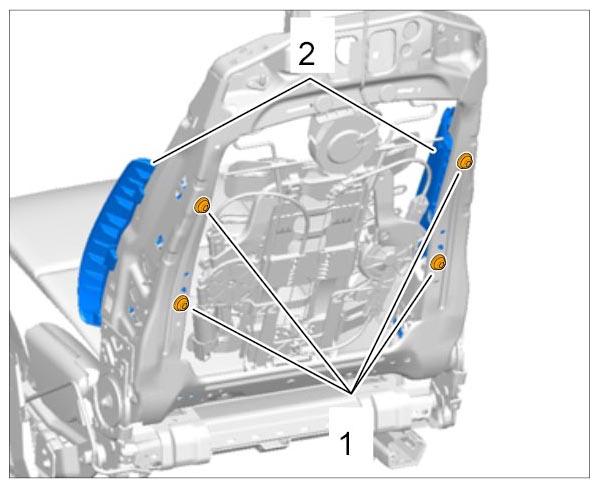

    Fig 1: Identifying Air Cushion And Screws
    G09940854Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Connect control valve pressure line (green) -3-  to the air cushion pressure line (green) -2-  .

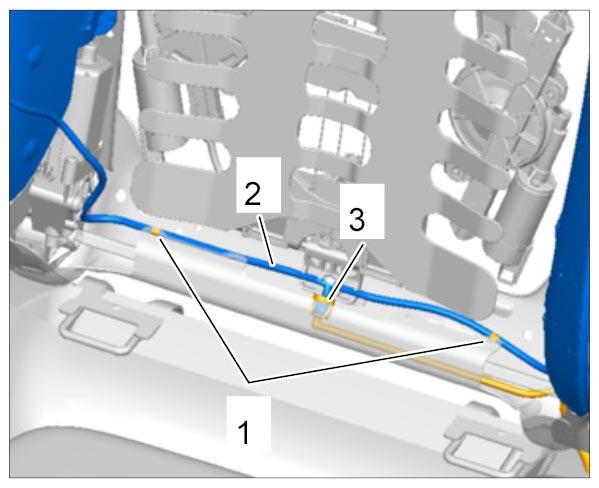

    Fig 2: Identifying Pressure Line
    G09940855Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Fit tie-wrap -1-  on the air cushion pressure line (green) -2-  .
