Removing Storage Tray Under Seat

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open up storage tray.
  2. Unscrew fastening screws -1-  .

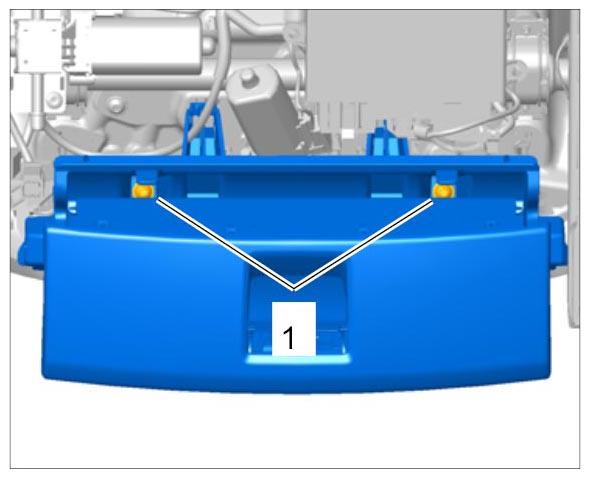

    Fig 1: Identifying Storage Tray Screws
    G09940848Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. On vehicles with memory seat adjustment, unscrew front screw -1-  for control unit bracket.

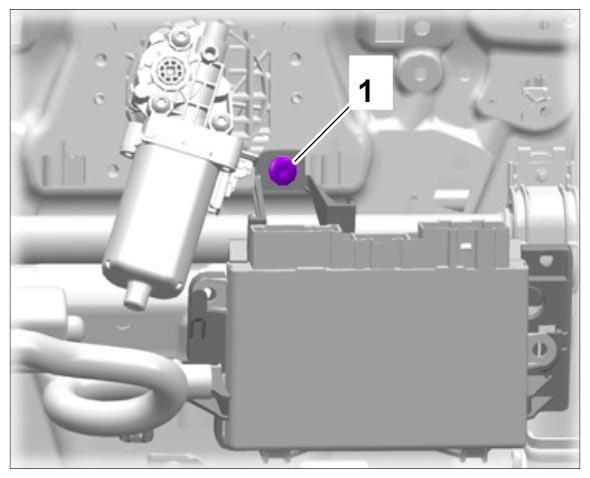

    Fig 2: Identifying Control Unit Bracket Screw
    G09940849Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Release locking mechanism -1-  on both sides using a screwdriver -A-  .

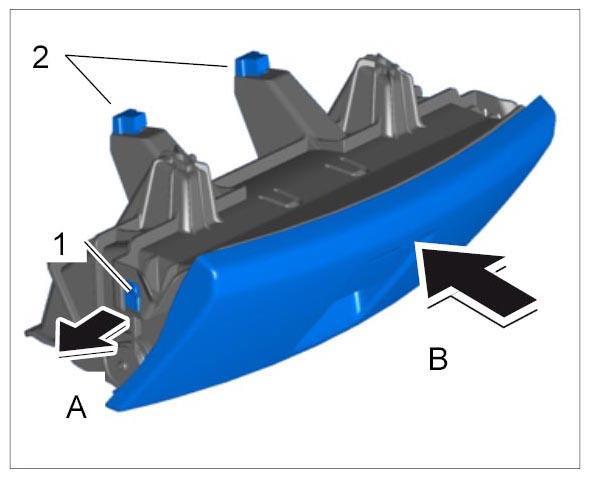

    Fig 3: Removing Storage Tray
    G09940850Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Slide the storage tray back -B-  and remove it from the guides -2-  .
