Removing Front Seat Trim: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle .
Naturally, some steps also have to be performed on the opposite side of the vehicle as well .
These must be carried out as a mirror image of the steps shown for the front and rear .

Information

To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

Move front seat to the rearmost position.

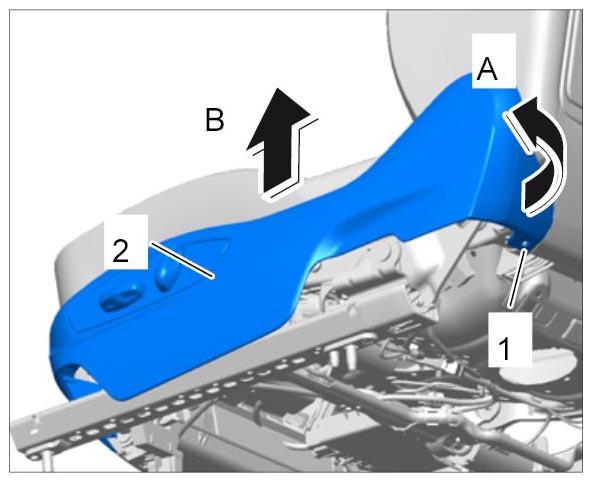

Press in expansion rivet pin -1- and pull out the expansion rivet.

Fig 1: Detaching Seat Trim On Outside
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull the outside of the seat trim -2- at the rear outwards -A- and press it up at the same time -B- .

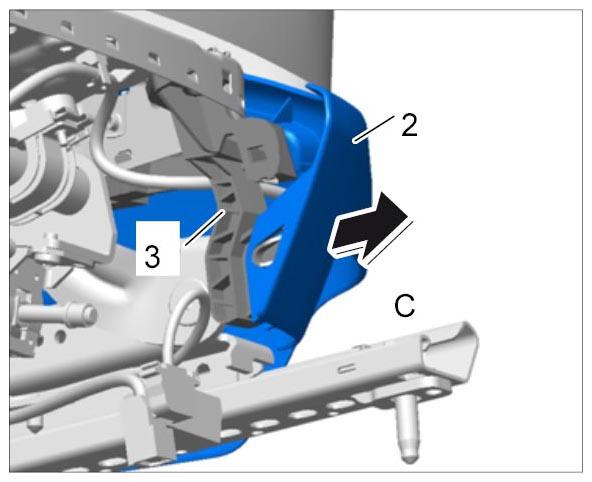

Pull the outside of the seat trim -2- forward out of the bracket -C- .

Fig 2: Removing Seat Trim On Outside
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

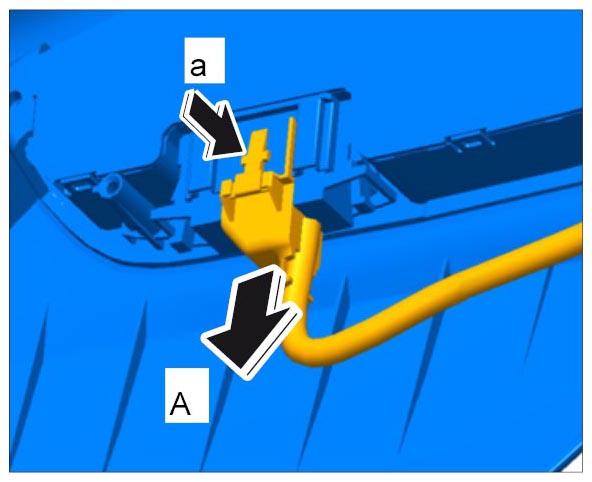

Release electric plug connection for seat adjustment -a- and pull it off -A- .

Fig 3: Unplugging Connector For Seat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
