Removing Air Cushion For Seat

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release and pull off the pressure line (red) -1-  under the seat.
  2. Remove tie-wrap.

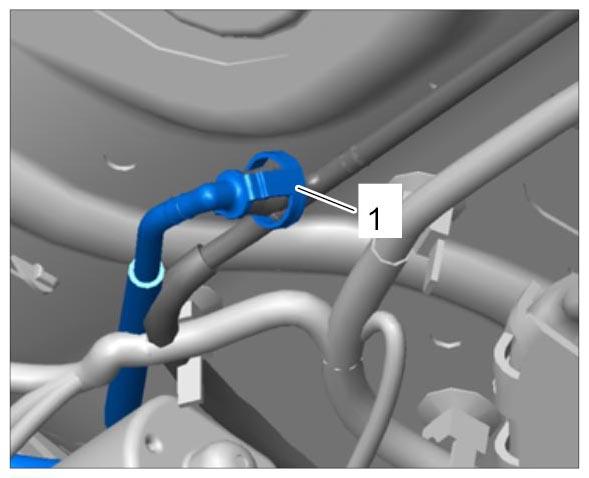

    Fig 1: Identifying Pressure Line
    G09940836Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    • Some of the repair illustrations show only one side of the vehicle  .
    • Naturally, some steps also have to be performed on the opposite side of the vehicle as well  .
  3. Unclip fixing clips -1-  on both air cushions -2-  from the brackets.

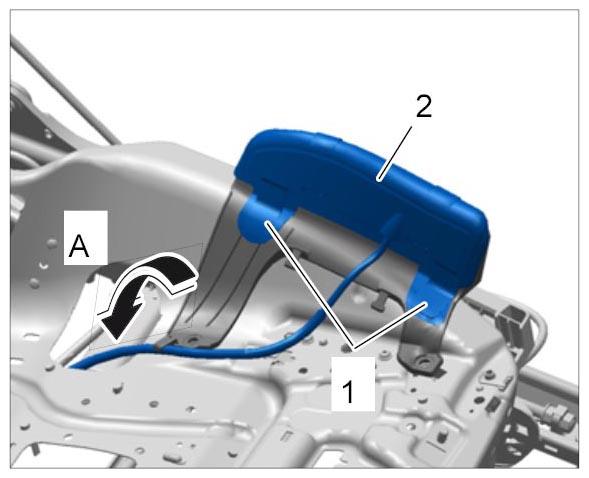

    Fig 2: Loosening Air Cushions For Seat
    G09940837Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Pull both air cushions -2-  through the cut-out in the seat frame -A-  .
  5. Guide out pressure lines and remove air cushion.
