Installing Air Cushion For Seat

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle .
Naturally, some steps also have to be performed on the opposite side of the vehicle as well .

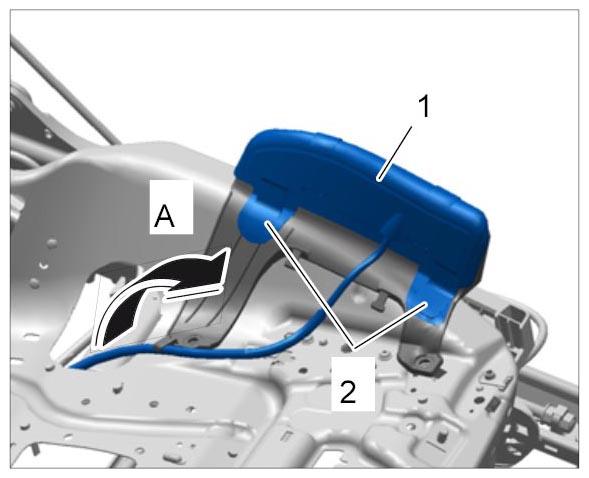

Pull both air cushions -1- up through the cut-outs in the seat frame from below -A- .

Fig 1: Fitting Air Cushion For Seat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip fixing clips -2- for both air cushions -1- into the brackets.

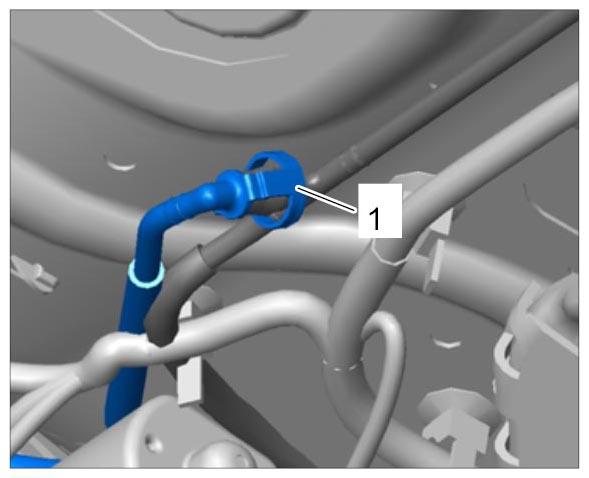

Fit the pressure line (red) -1- under the seat.

Fig 2: Identifying Pressure Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure the pressure line with a new tie-wrap.
