Installing Front Seat Console

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position seat console on the vehicle floor.
  2. Tighten four fastening screws -1-  on the seat console at the driver's side and three fastening screws on the seat console at the passenger's side to Tightening torque 50 Nm (37 ftlb.).

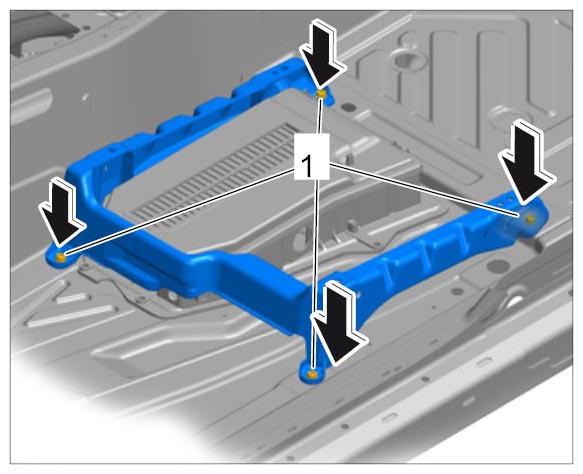

    Fig 1: Installing Seat Console
    G09940833Courtesy of PORSCHE CARS NORTH AMERICA, INC.
