Tools And Materials
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
- To mill the required shoulder, the tool with the designation Spot facer for Time-Sert thread repair set NR.122-2 must be used. The tool provided with the complete set supplied must not be used in this case!

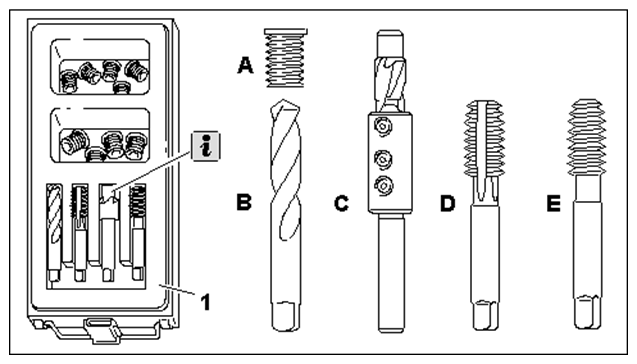

| Item | Tool |
|---|---|
| -1- | Time-Sert thread repair set Nr.122-1 |
| -A- | Threaded bush |
| -B- | Drill bit |
| -C- | Spot facer for Time-Sert thread repair set Nr.122-2 |
| -D- | Thread cutter |
| -E- | Screw-in tool |
