Removing Threaded Bush For Seat Connection

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

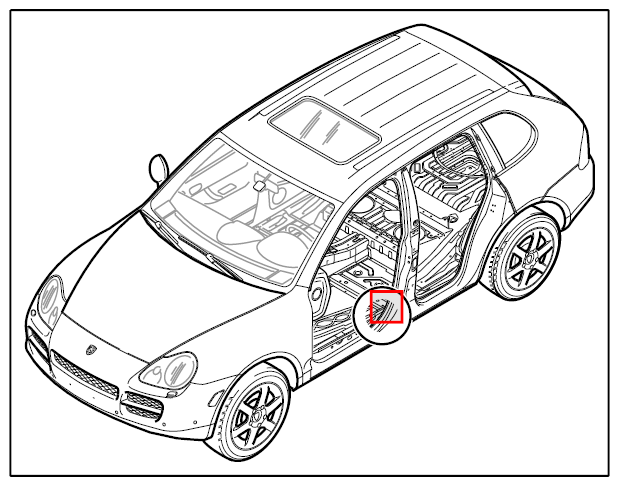

Fig 1: Identifying Threaded Bush For Seat Connection

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

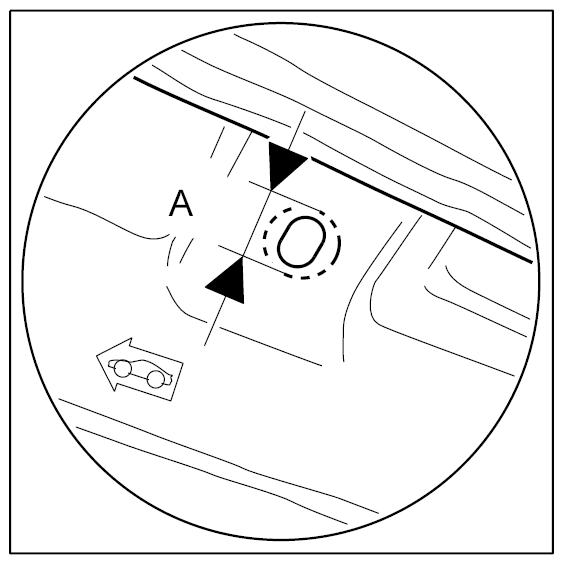

Drill out drain hole.
1. 1.1. On the seat cross member extension, use a conical shell reaming drill Nr.128 to drill out the diameter of the drain hole to the dimension -A- = 30 mm.

  Fig 2: Identifying Drain Hole Dimension
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

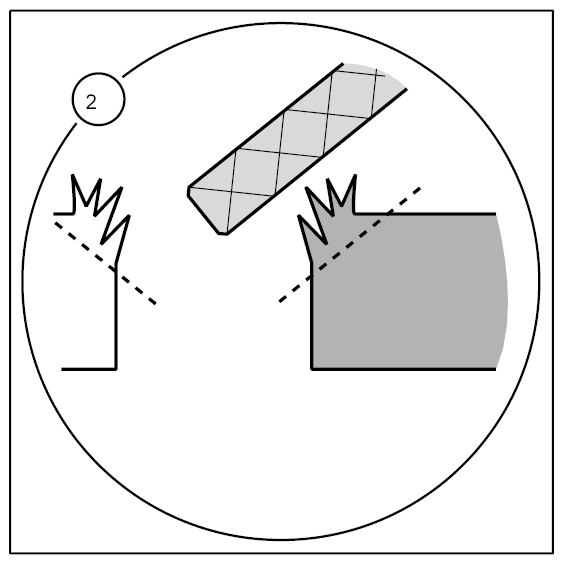

Remove burrs from cut edges.

Fig 3: Identifying Cut Edges
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

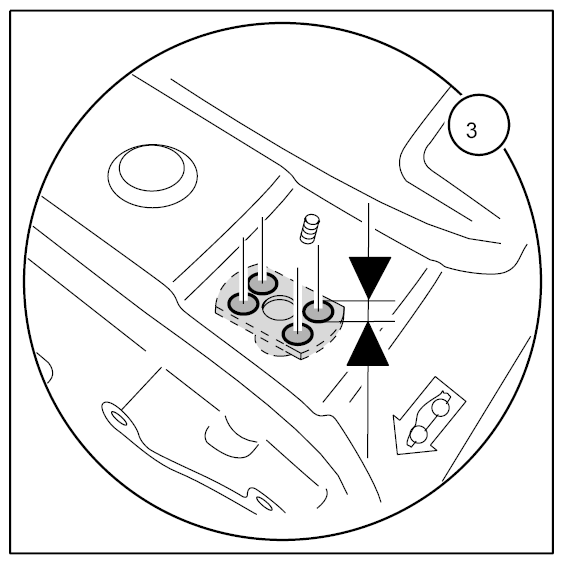

Separate welded joints
1. 3.1. Drill out the joints between the seat cross member and threaded insert using a spotweld drill Nr.129 .

  Fig 4: Identifying Welded Joints
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

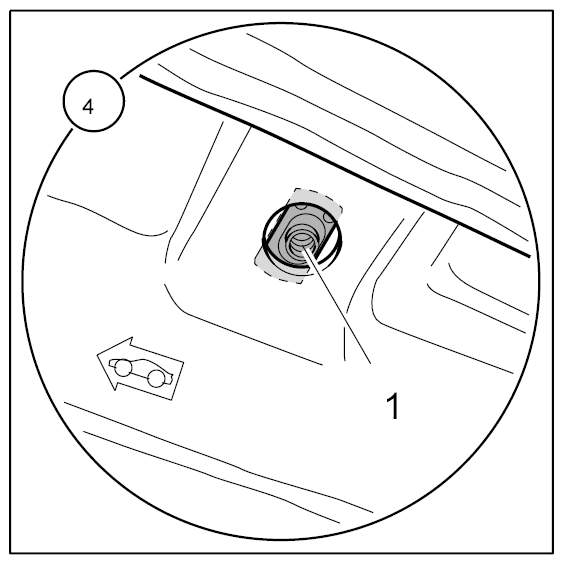

Remove threaded bush.
1. 4.1. Remove the old threaded bush -1- through the widened opening.

  Fig 5: Identifying Threaded Bush
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 6: Removing Threaded Bush
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
