Removing Dashboard Support

Information

Due to the large number of cable attachments, not all cable attachments can be described and illustrated.

Information

When removing the dashboard support, make sure that wires or plug connections are not damaged.

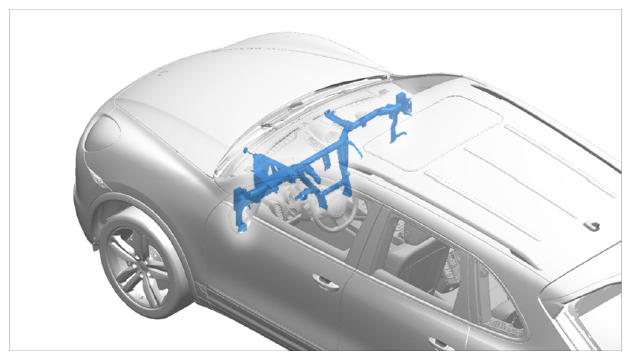

Fig 1: Identifying Dashboard Support Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

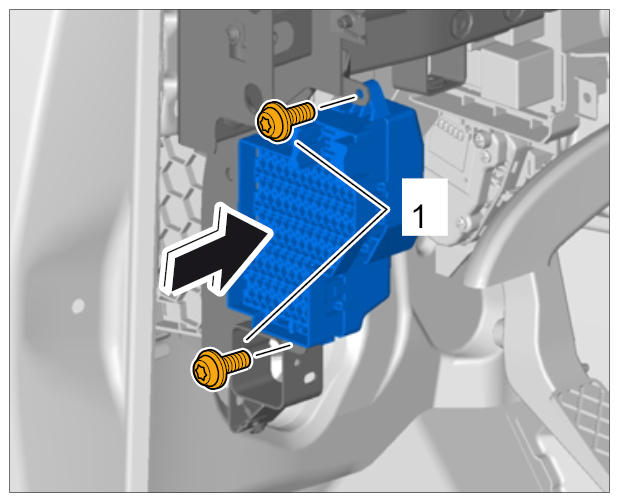

1. Unscrew the fastening screws -1-  for the fuse box at the left and right and leave the fuse box hanging at the wires.
   Fig 2: Removing Bracket For Fuse Box At Left And Right

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

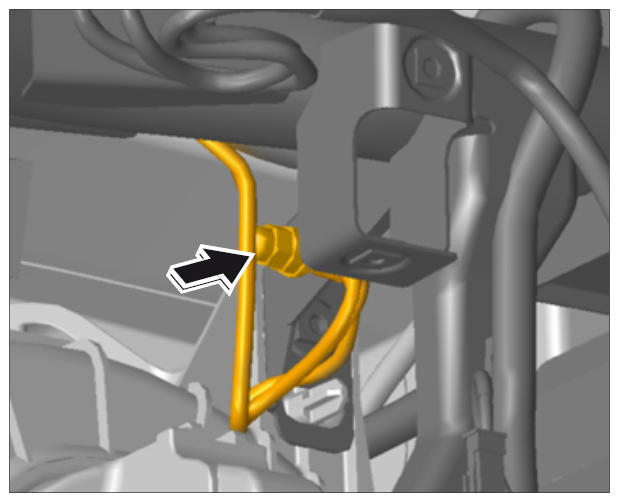

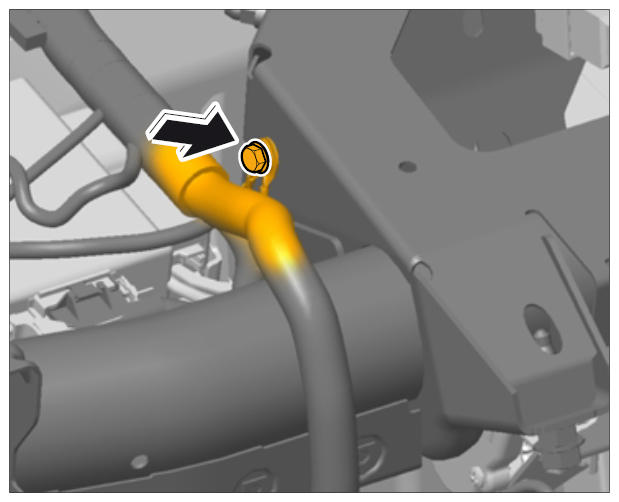

2. Screw off fastening nut on driver's side -arrow -  and remove the ground cable.
   Fig 3: Locating Ground Cable Point On Driver's Side

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

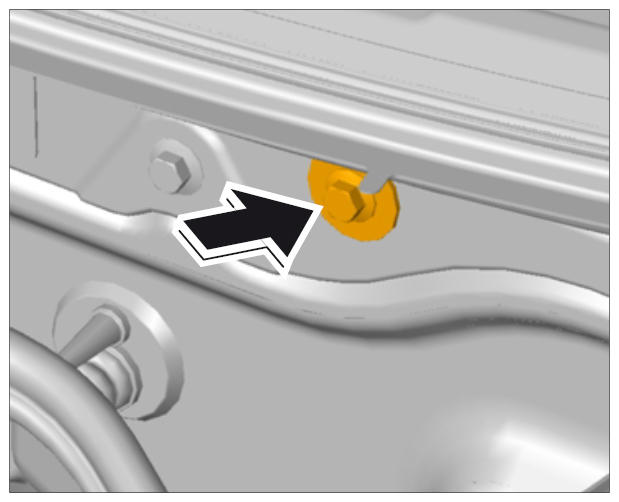

3. Screw off fastening nut on passenger's side -arrow-  and remove the ground cable.
   Fig 4: Locating Ground Cable Point On Passenger's Side

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Release and unplug four electric plug connections for the control unit for front-end electronics on the driver's side. → REMOVING CONTROL UNIT FOR FRONT-END ELECTRONICS
5. Release and unplug electric plug connection for the voltage transformer for Start/Stop on the passenger's side. → REMOVING VOLTAGE CONVERTER FOR START/STOP

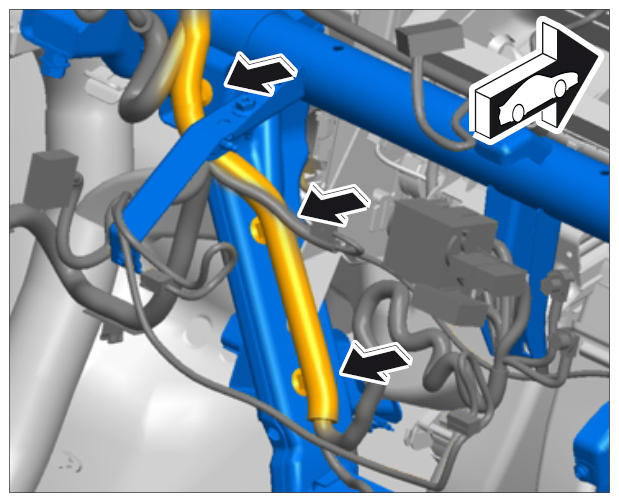

6. Remove tie-wraps -arrows-  and remove the wire harness from the dashboard support.
   Fig 5: Locating Tie-Wraps

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

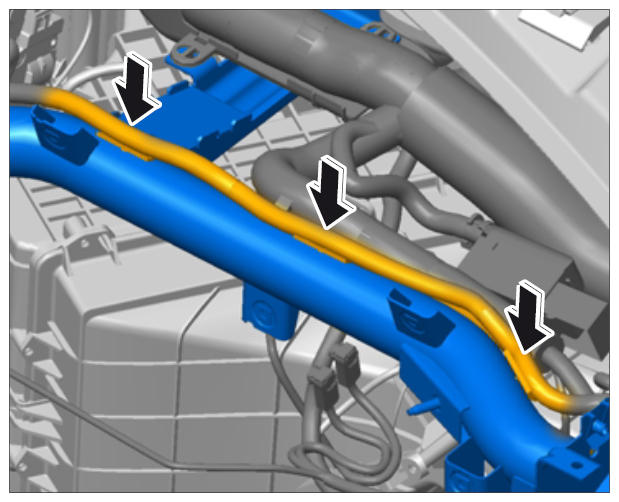

7. Unclip the wire harness along the dashboard support -arrows-  .
   Fig 6: Locating Wire Harness

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

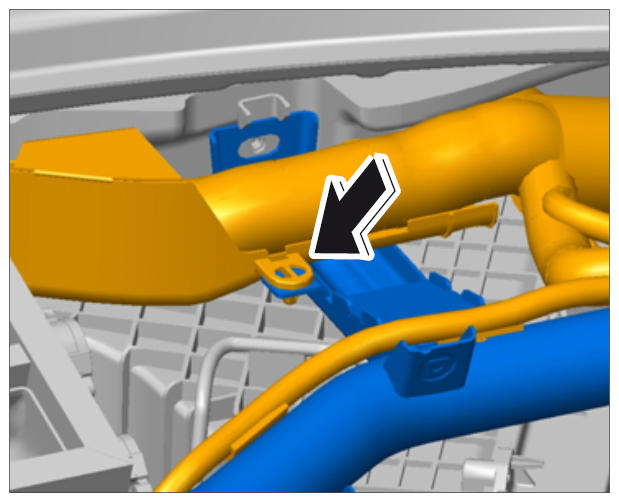

8. Unclip the main cable duct from the heater/air-conditioning unit -arrow-  .
   Fig 7: Locating Main Cable Duct

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Remove dashboard support.
   1. 9.1. Unscrew fastening screw for the dashboard support in the engine compartment -arrow-  .
      Fig 8: Locating Engine Compartment Fastening Screws

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

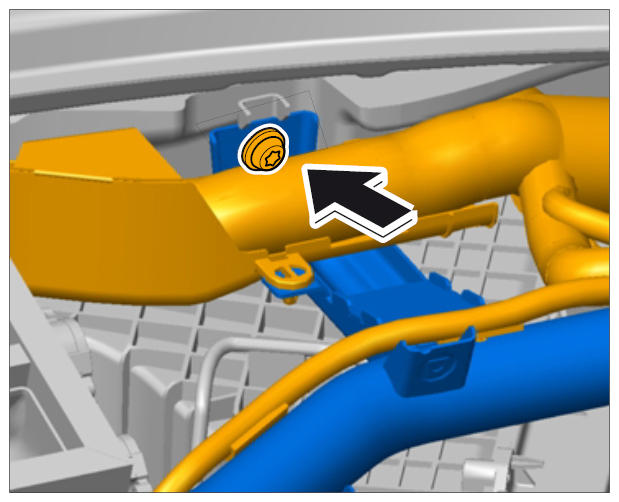

   2. 9.2. Lift up the main cable duct and unscrew the fastening screw -arrow-  under the main cable duct.
      Fig 9: Locating Fastening Screw On Main Cable Duct

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

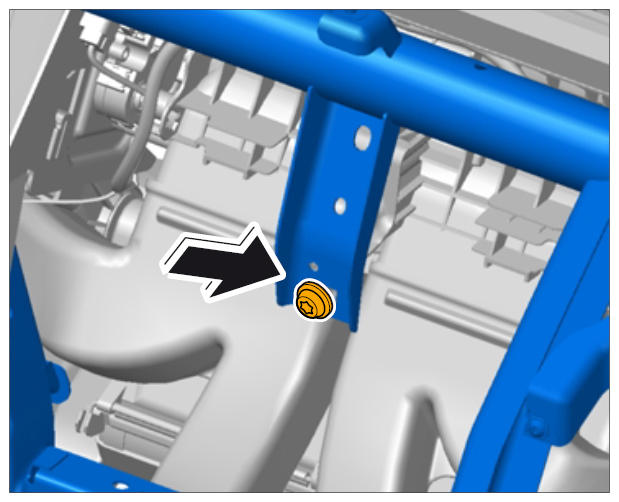

   3. 9.3. Unscrew fastening screw for the dashboard support at the plenum panel -arrow-  .
      Fig 10: Locating Plenum Panel Fastening Screw

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

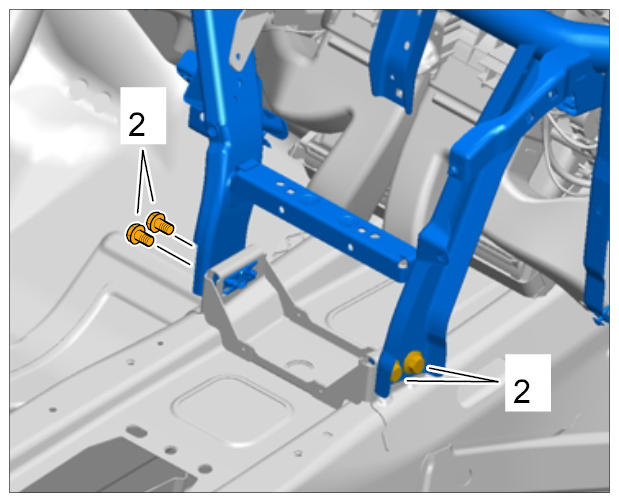

   4. 9.4. Unscrew four fastening screws used to secure the dashboard support to the center tunnel.
      Fig 11: Identifying Centre Tunnel Fastening Screws

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

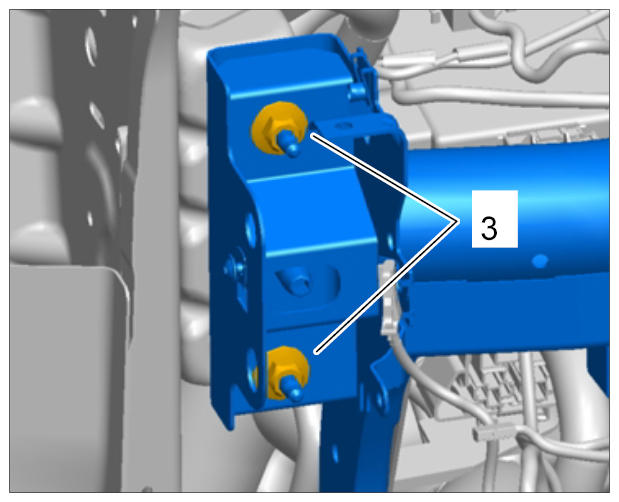

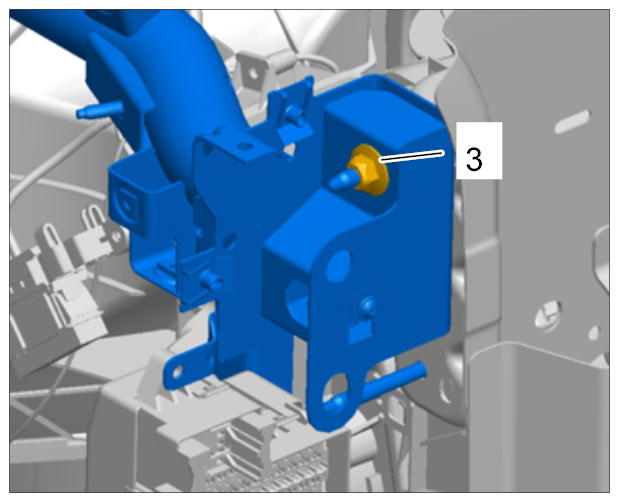

   5. 9.5. Unscrew two fastening nuts -3-  used to secure the dashboard support to the body at the left.
      Fig 12: Identifying Dashboard Support Fastening Nuts (Left)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   6. 9.6. Unscrew one fastening nut -3-  used to secure the dashboard support to the body at the right.
      Fig 13: Identifying Dashboard Support Fastening Nuts (Right)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
10. Guide the dashboard support out of the wire harness and remove it.
