Technical Values

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value
Fastening nut securing dashboard bracket to body at the left	Item 3	Tightening torque	20 Nm (15 ftlb.)

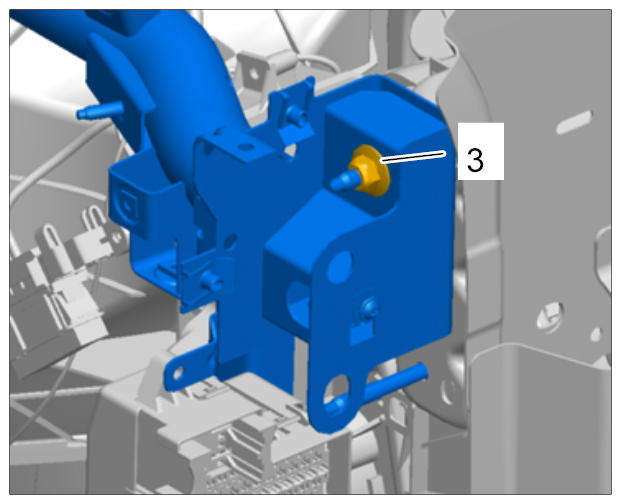

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nuts for dashboard bracket at the left
Fastening nut securing dashboard bracket to body at the right	Item 3	Tightening torque	20 Nm (15 ftlb.)

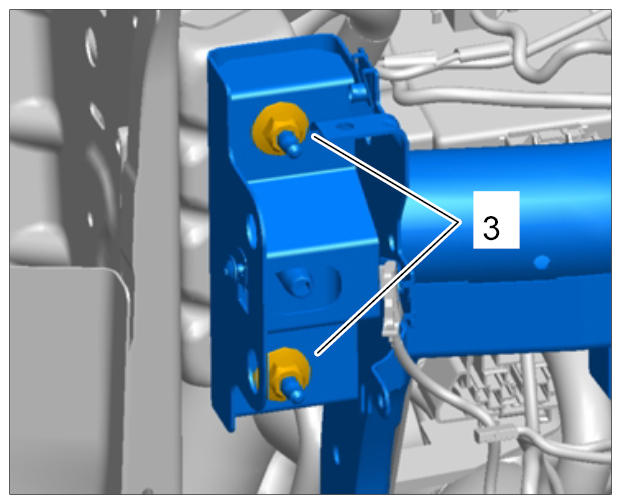

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nut for dashboard bracket at the right
Fastening screw securing bracket to center tunnel	Item 2	Tightening torque	20 Nm (15 ftlb.)

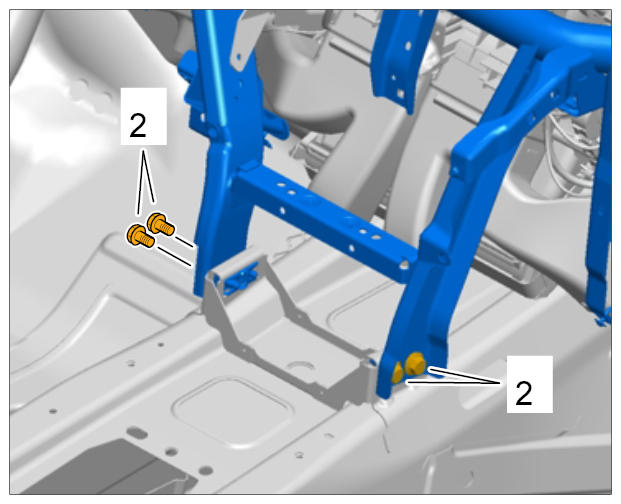

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws securing dashboard to center tunnel
Fastening screw securing engine compartment to dashboard bracket		Tightening torque	20 Nm (15 ftlb.)

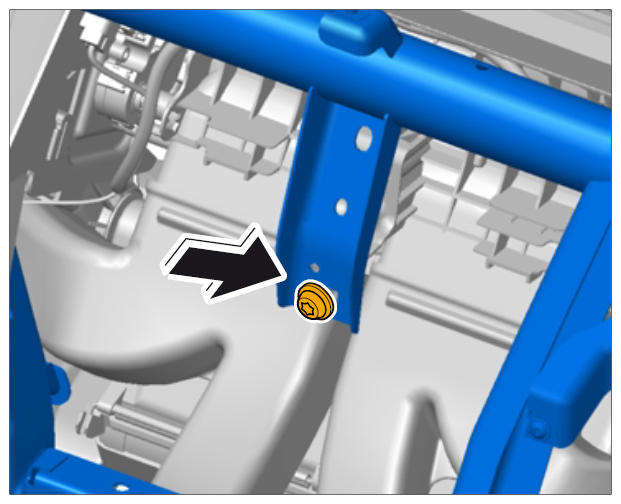

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws securing engine compartment to bracket
Fastening screw under main cable duct		Tightening torque	10 Nm (7.5 ftlb.)

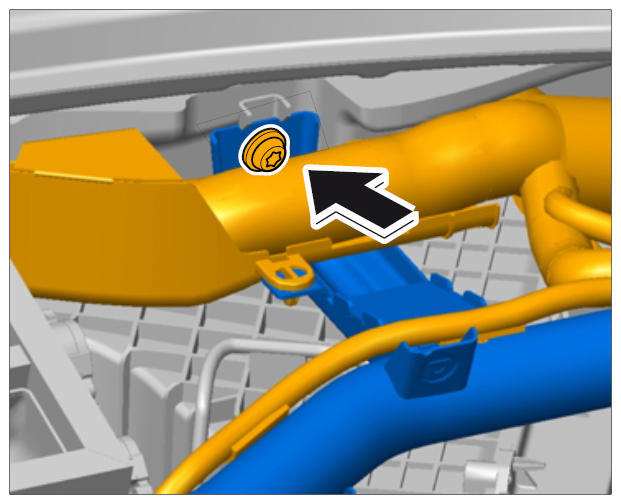

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screw on main cable duct
Fastening screw securing dashboard bracket to plenum panel		Tightening torque	10 Nm (7.5 ftlb.)

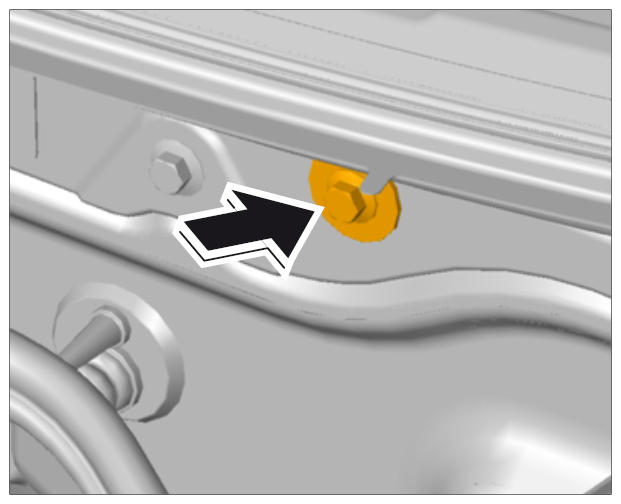

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screw securing dashboard to plenum panel
