Installing Dashboard Bracket

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Due to the large number of cable attachments, not all cable attachments can be described and illustrated.

Information

When positioning the dashboard support, make sure that wires or plug connections are not jammed.

Information

Before securing the dashboard support, make sure that all lines and plug connections are routed correctly.

  1. Get another mechanic to help you position the dashboard bracket in such a way that the wire harnesses can be clipped in.
  2. Install dashboard bracket.

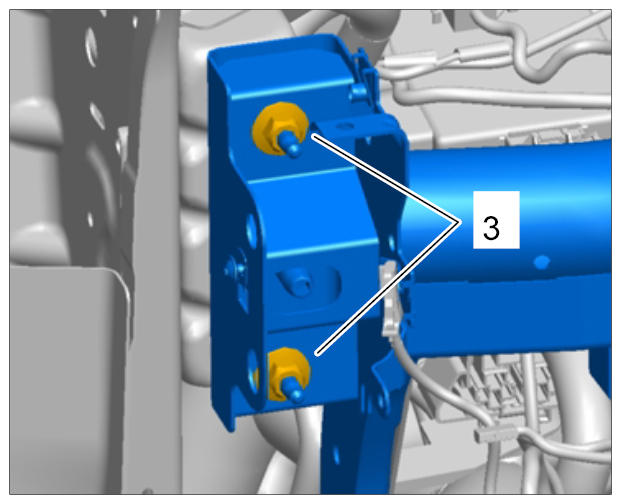

    1. 2.1. Tighten two fastening nuts at the left used to secure the dashboard bracket to the body -3-  to Tightening torque 20 Nm (15 ftlb.)  .
      Fig 1: Identifying Dashboard Bracket Fastening Nut (Left)
      G09938663Courtesy of PORSCHE CARS NORTH AMERICA, INC.

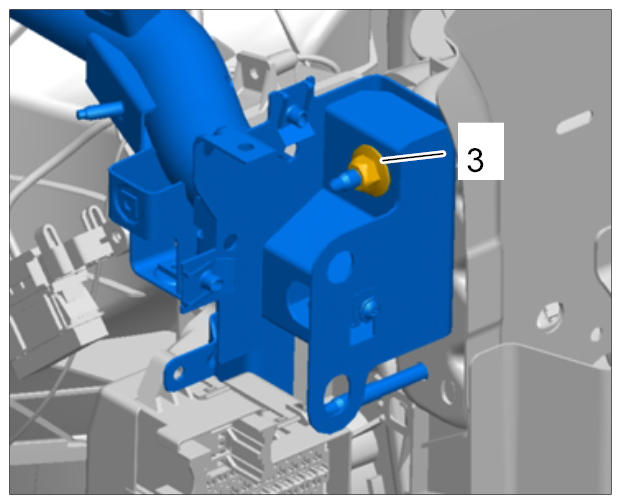

    2. 2.2. Tighten one fastening nut -3-  at the right used to secure the dashboard bracket to the body to Tightening torque 20 Nm (15 ftlb.)  .
      Fig 2: Identifying Dashboard Bracket Fastening Nut (Right)
      G09938664Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    3. 2.3. Tighten four fastening screws on the center tunnel -2-  to Tightening torque 20 Nm (15 ftlb.)  .

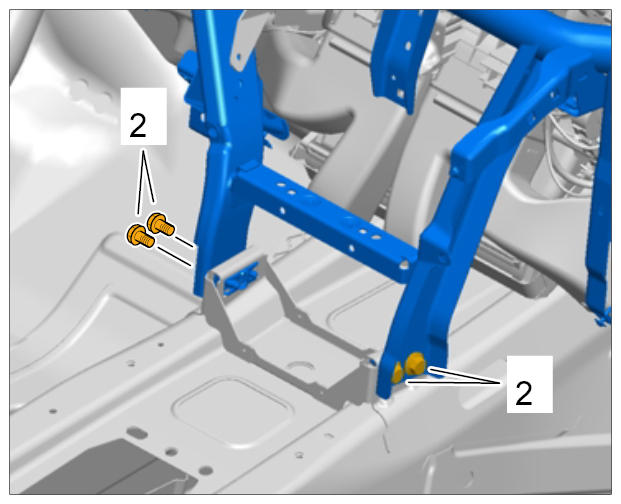

      Fig 3: Identifying Centre Tunnel Fastening Screws
      G09938665Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    4. 2.4. Tighten fastening screw used to secure engine compartment to dashboard bracket -arrow-  to Tightening torque 20 Nm (15 ftlb.)  .

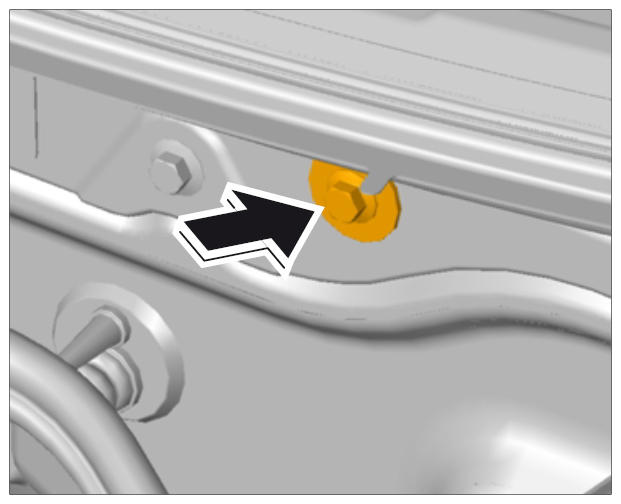

      Fig 4: Locating Engine Compartment To Bracket Fastening Screws
      G09938666Courtesy of PORSCHE CARS NORTH AMERICA, INC.

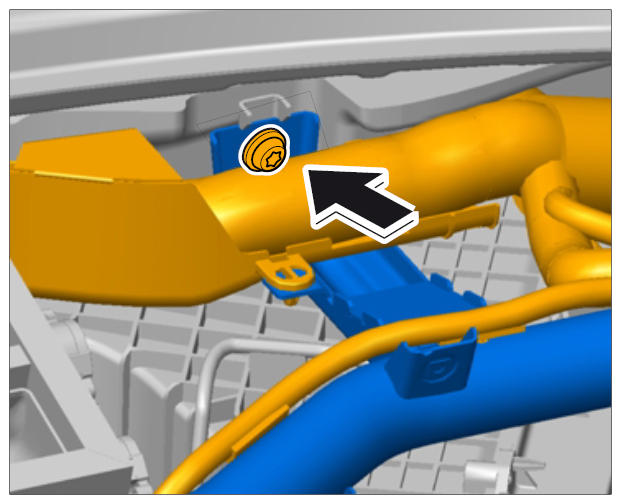

    5. 2.5. Tighten fastening screw under the main cable duct -arrow-  to Tightening torque 10 Nm (7.5 ftlb.)  .
      Fig 5: Locating Main Cable Duct Fastening Screw
      G09938667Courtesy of PORSCHE CARS NORTH AMERICA, INC.

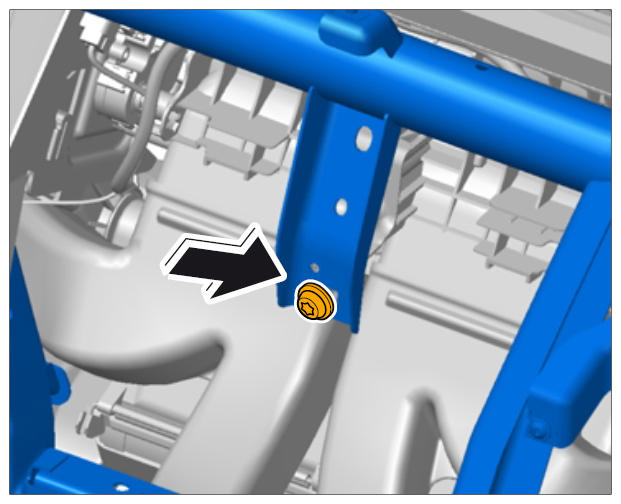

    6. 2.6. Tighten fastening screw used to secure the dashboard bracket to the plenum panel -arrow-  to Tightening torque 10 Nm (7.5 ftlb.)  .
      Fig 6: Locating Dashboard To Plenum Panel Fastening Screw
      G09938668Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Clip in main cable duct at the heater/air-conditioning unit -arrow-  .

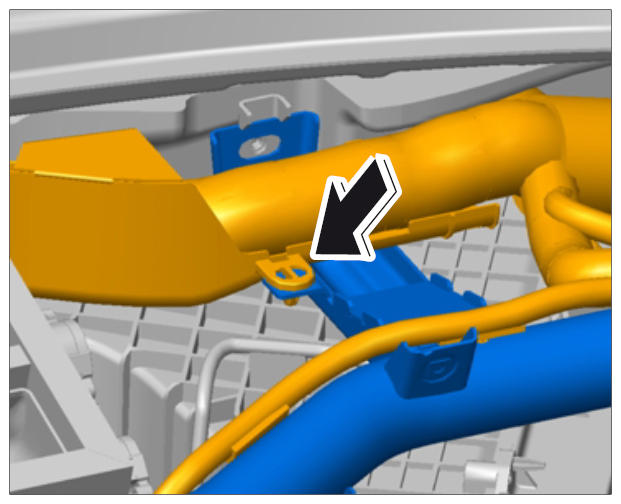

    Fig 7: Locating Clipping In Main Cable Duct
    G09938669Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Clip in wire harness along the dashboard bracket -arrows-  .

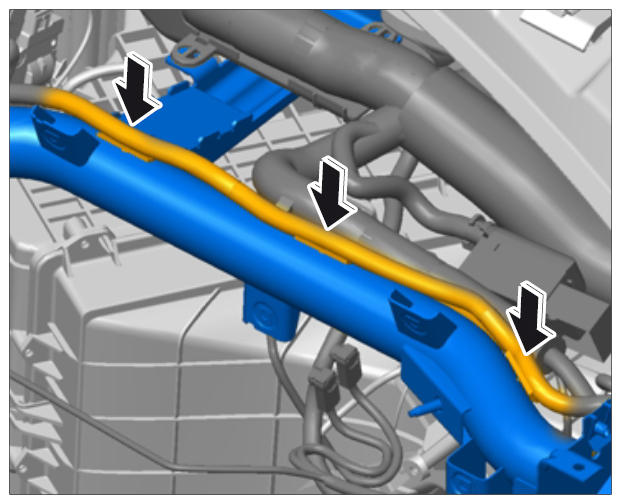

    Fig 8: Locating Clipping In Wire Harness
    G09938670Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Secure wire harness on the dashboard bracket with new tie-wraps -arrows-  .

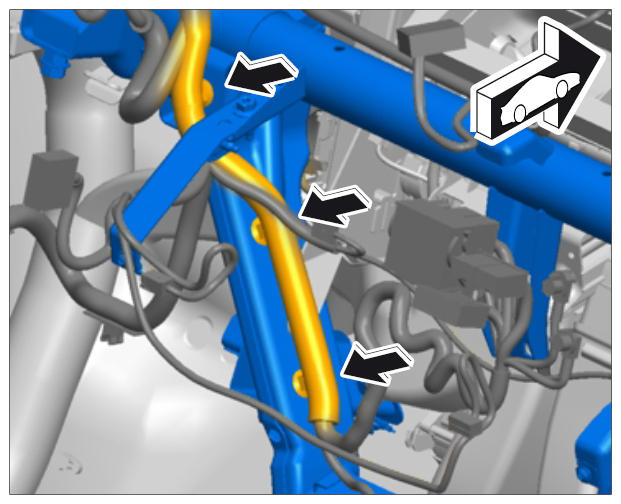

    Fig 9: Locating Tie-Wraps
    G09938671Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Connect ground cable to ground pin.
  7. Attach ground cable to the stud and screw on fastening nut on driver's side -arrow-  .

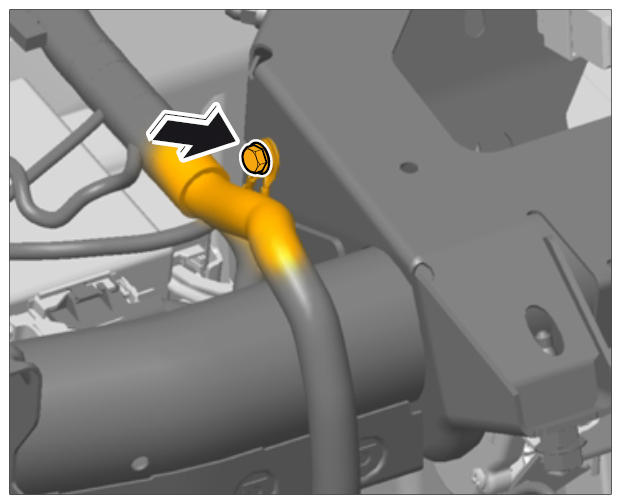

    Fig 10: Locating Ground Cable Point On Driver's Side
    G09938672Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Attach ground cable to the stud and screw on fastening nut on passenger's side -arrow-  .

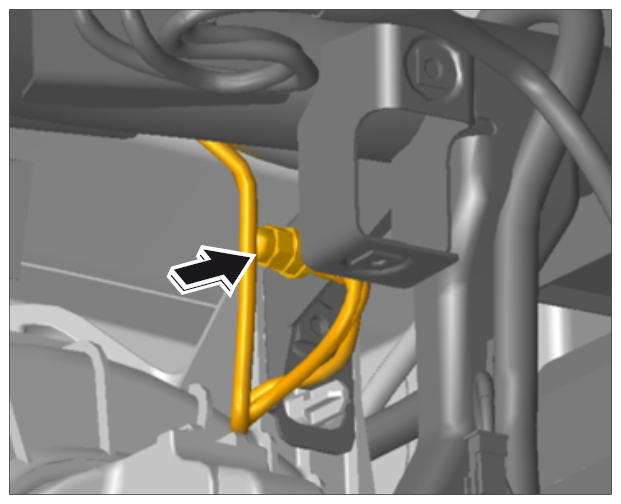

    Fig 11: Locating Ground Cable Point On Passenger's Side
    G09938673Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. Plug in and lock electric plug connection on headlight control unit. → INSTALLING HEADLIGHT CONTROL UNIT
  10. Plug in and lock electric plug connection for KESSY antenna. → INSTALLING KESSY ANTENNA
  11. Plug in and lock four electric plug connections for the front-end electronics control unit. → INSTALLING CONTROL UNIT FOR FRONT-END ELECTRONICS
  12. Plug in and lock electric plug connection for voltage transformer for Start/Stop. → INSTALLING VOLTAGE CONVERTER FOR START/STOP
  13. Position fuse box at the left and right and secure with the two fastening screws -1-  .

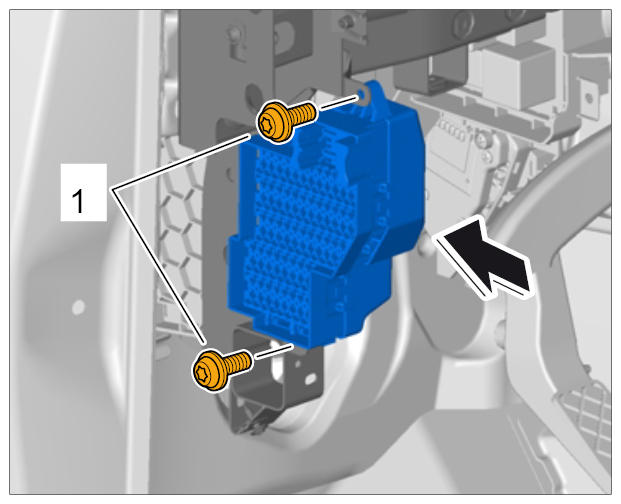

    Fig 12: Identifying Fuse Box Fastening Screws (Left And Right)
    G09938674Courtesy of PORSCHE CARS NORTH AMERICA, INC.
