Removing Wing Rail

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

Mark and make cut for wing rail. → Distance to lower edge of rail: 275 mm

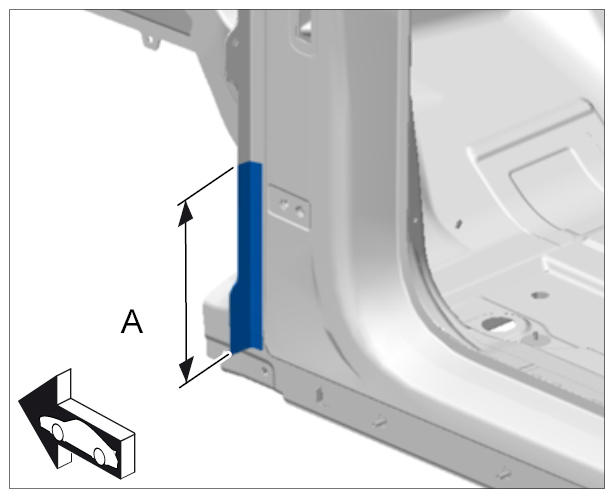

Fig 1: Identifying Distance To Lower Edge Of Rail
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Drill out spotwelds using spotweld drill .

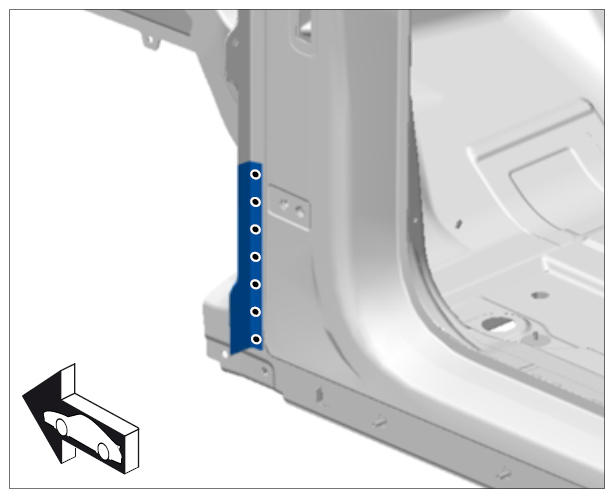

Fig 2: Wing Rail Component Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Heat up connection areas using a hot-air gun.

Fig 3: Identifying Wing Rail
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove wing rail.
