Preparing Outer Side Member For Installation: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fit outer side member.

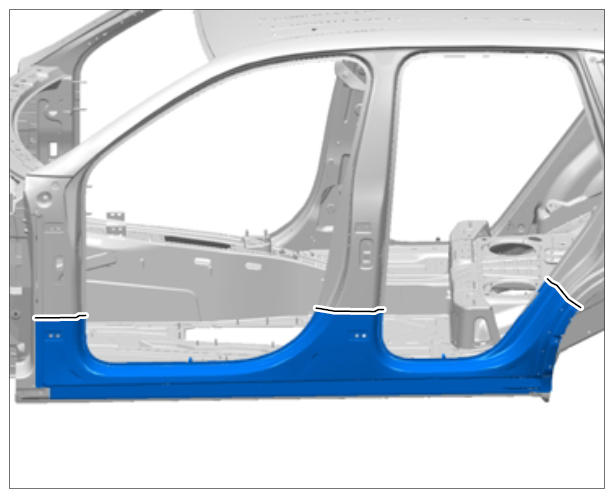

Fig 1: Preparing Outer Side Member For Installation
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Cut outer side member at the transitions to the body leaving an overlap of 30 mm.
2. 1.2. Fit outer side member.
  Observe gap dimensions. → 5X00IN DIAGRAM - BODY GAP DIMENSIONS

  Fig 2: Identifying Outer Side Member
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Make cuts through the outer side member and body in the overlap areas.
Remove outer side member.
Drill holes for plug welding using inert gas.
In the area of the A-pillar, maintain spacing between the holes as on the old part.

→ Distance to upper edge: 10 mm

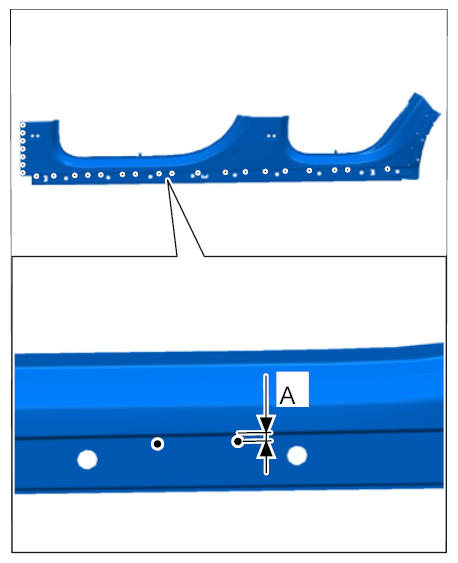

Fig 3: Identifying Drill Holes For Plug Welding Outer Side Member
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Grind both sides of connecting flanges of outer side member in the marked areas until bare.

Fig 4: Identifying Outer Side Member
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
