Installing Outer Side Member: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Apply adhesive and body sealant.

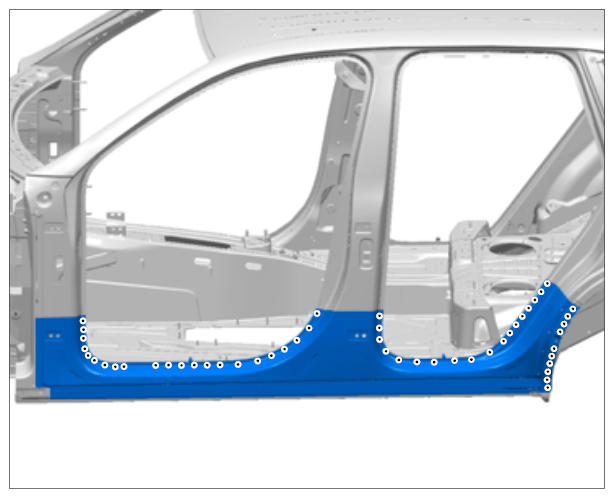

Fig 1: Applying Adhesive And Body Sealant On Outer Side Member
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Evenly apply adhesive to the marked areas.
  Working with body structural adhesive → 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE
2. 1.2. Apply support adhesive to a height of 15 mm all around the sealing elements in the areas -A und C- .
  Apply support adhesive in the area -B- with two 15 mm high adhesive beads on the B-pillar and opposite on the side member.

  Support adhesive

  Fig 2: Applying Support Adhesive On Outer Side Member
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit and secure outer side member.
Observe gap dimensions. → 5X00IN DIAGRAM - BODY GAP DIMENSIONS
Weld in outer side member.

Fig 3: Identifying Weld In Outer Side Member
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Resistance spot-weld outer side member.
2. 3.2. Apply a full weld to outer side member using inert gas.

  Fig 4: Identifying Resistance Spot-Weld Outer Side Member
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 3.3. Plug-weld outer side member using inert gas.

  Fig 5: Identifying Plug-Weld Outer Side Member
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
