Installing Wing Rail

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit and secure wing rail.
  2. Plug-weld wing rail using inert gas (two plate thicknesses).

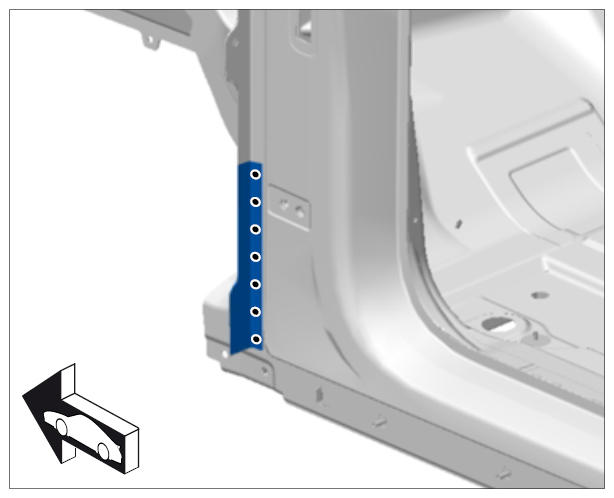

    Fig 1: Identifying Plug-Weld Wing Rail
    G09938621Courtesy of PORSCHE CARS NORTH AMERICA, INC.
