Installing Inner B-Pillar Reinforcement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fit and secure inner B-pillar reinforcement.
Resistance spot-weld inner B-pillar reinforcement.

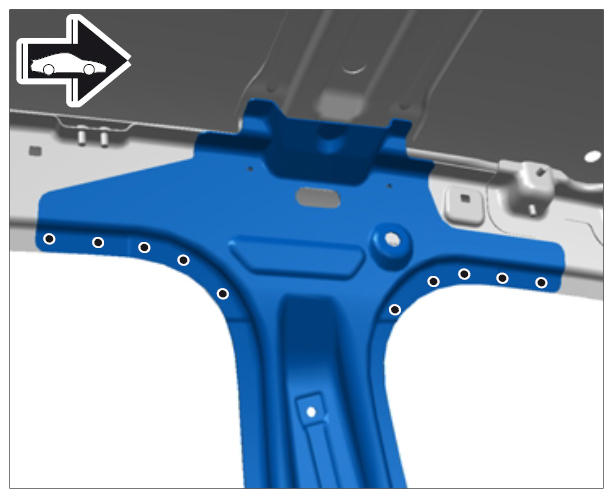

Fig 1: Identifying Resistance Spot-Weld Inner B-Pillar Reinforcement
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

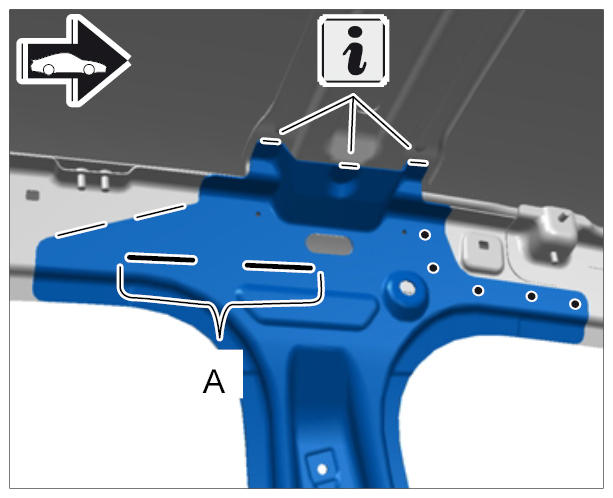

Apply a full weld to inner B-pillar reinforcement using inert gas.

Fig 2: Identifying Inner B-Pillar Reinforcement Weld Area
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

When welding the inner B-pillar reinforcement at the roof cross member, make sure that the heat does not damage the outer roof panel.
- Perform a welding sample before applying a full weld and set the correct parameters (wire feed, welding level/welding current).
- Cool the outer roof panel using a moist cloth and if necessary insert a copper plate between the roof and roof cross member.
Weld in inner B-pillar reinforcement.

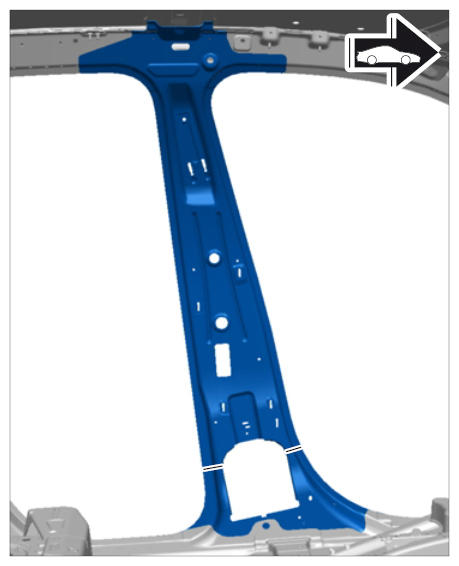

Fig 3: Identifying Weld In Inner B-Pillar Reinforcement
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Spot weld inner B-pillar reinforcement using inert gas.
  Information

  When welding slots, make sure that both edges of the slot are welded through.

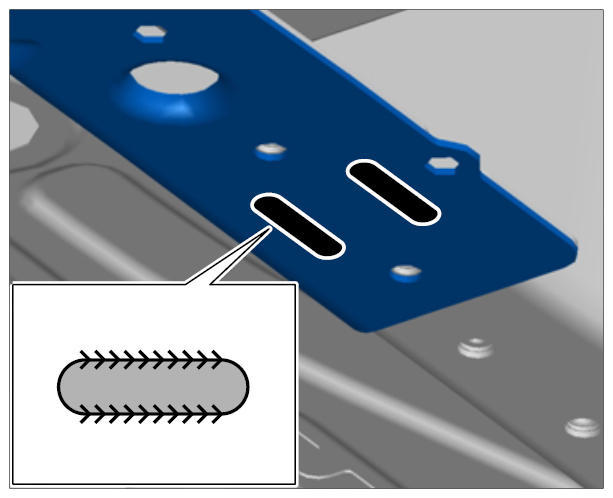

  Fig 4: Identifying Slot Welding
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 4.2. Slot-weld inner B-pillar reinforcement in the area -A- using inert gas.
3. 4.3. Plug-weld inner B-pillar reinforcement using inert gas.
