Preparing B-Pillar For Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fit the B-pillar.

Fig 1: Identifying B-Pillar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

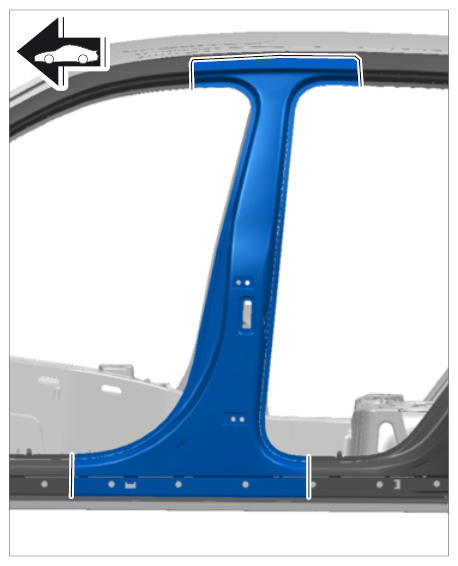

1. 1.1. Cut B-pillar at the transition to the outer side member and top side section leaving an overlap of 20 mm.
2. 1.2. Fit the B-pillar.
  Observe gap dimensions. → 5X00IN DIAGRAM - BODY GAP DIMENSIONS

  Fig 2: Preparing B-Pillar
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Make cuts through the outer side member and top side section in the overlap areas.
Remove B-pillar.
Drill holes for plug welding using inert gas.
→ Distance to upper edge: 10 mm

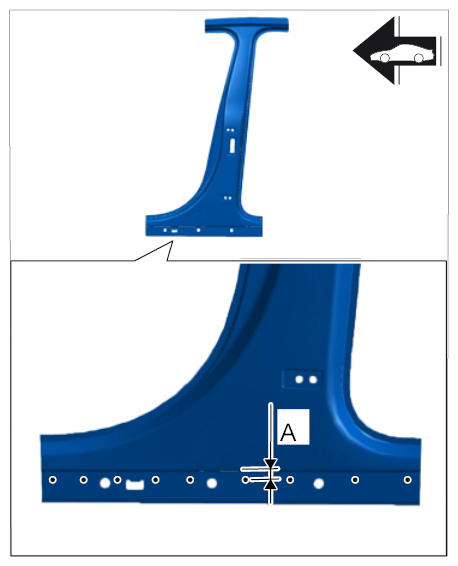

Fig 3: Identifying B-Pillar Drill Holes For Plug Welding
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

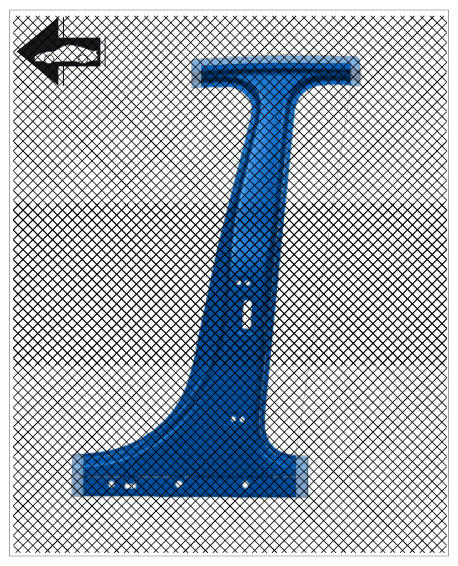

Grind both sides of connecting flanges of B-pillar in the marked areas until bare.

Fig 4: Identifying B-Pillar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
