Preparing Wing Rail For Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

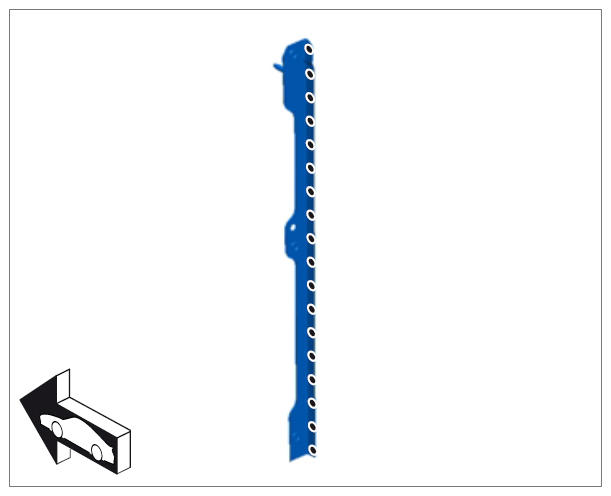

Punch holes (Ø 8 mm) for plug welding using inert gas. Maintain spacing between holes as on the old part.

Fig 1: Identifying Wing Rail
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

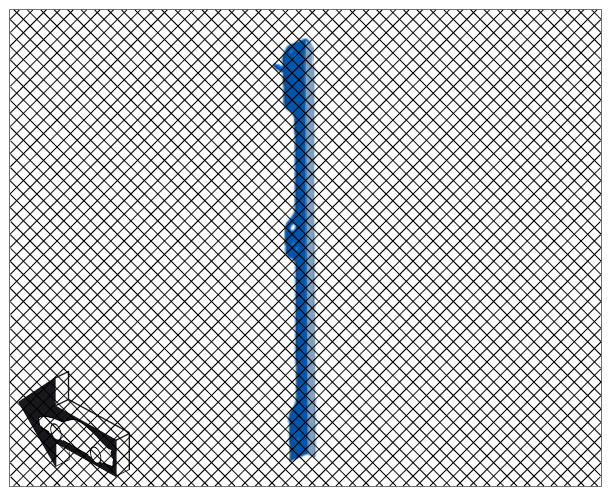

Grind both sides of connecting flanges of wing rail in the marked areas until bare.

Fig 2: Identifying Wing Rail
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
