Preparing Outer Upper Side Member (Section) For Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Transfer cut from the old part and make cut.

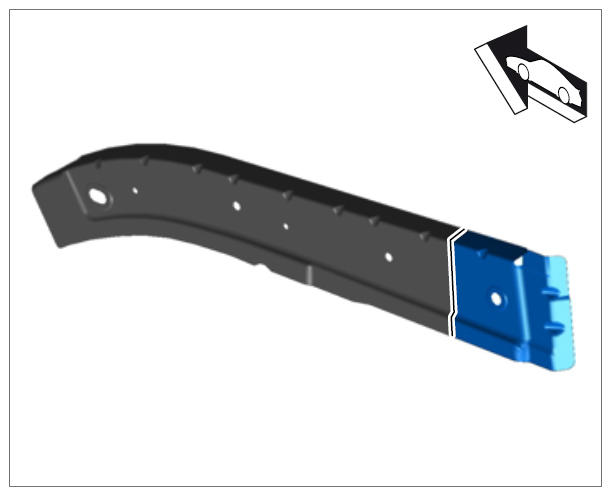

    Fig 1: Identifying Outer Upper Side Member (Section)
    G09938469Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Grind both sides of connecting flanges of outer upper side member (section) in the marked areas until bare.
    Fig 2: Identifying Outer Upper Side Member (Section)
    G09938470Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Coat all spot-weld flange areas with zinc powder paint.
