Preparing Outer Side Member (Front Section) And A-Pillar For Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

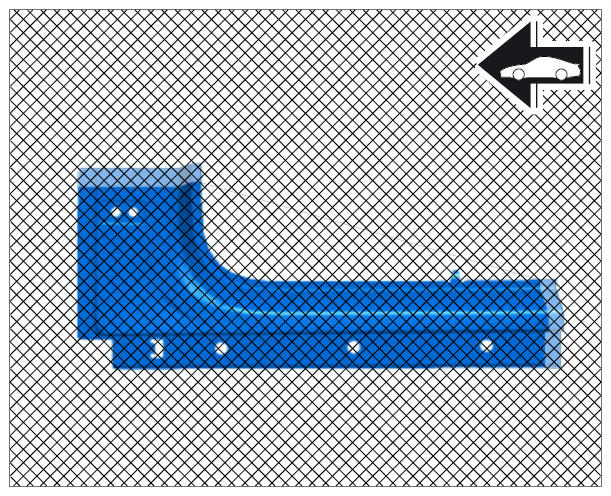

Cut outer side member (front section) at the transition to the body (B-pillar) leaving an overlap of 30 mm.

Fig 1: Identifying Outer Side Member (Front Section)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

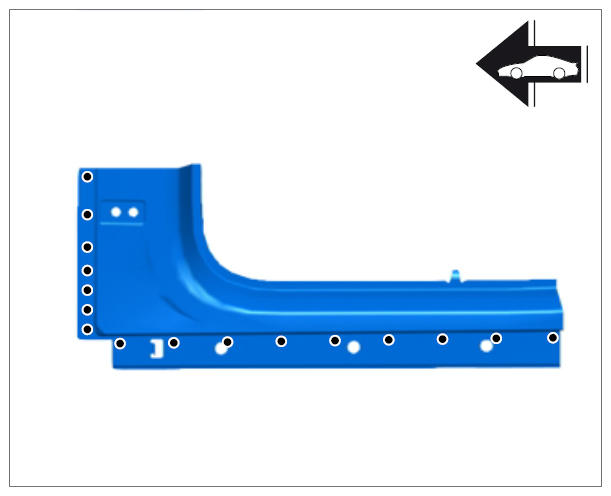

Drill holes (Ø 8 mm) for plug welding using inert gas. Maintain spacing between holes as on the old part.

Fig 2: Identifying Outer Side Member (Front Section)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

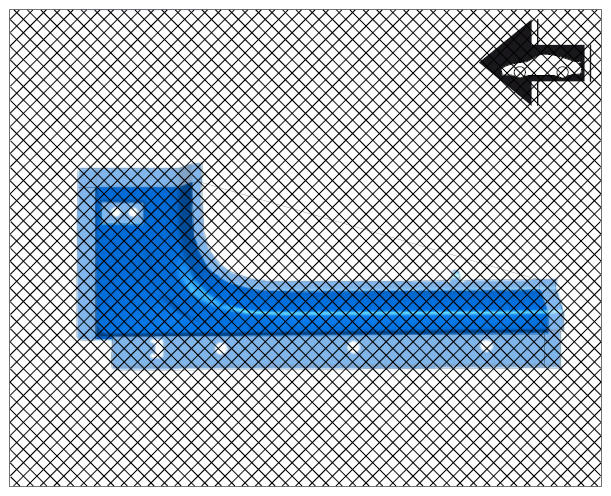

Grind both sides of connecting flanges of outer side member in the marked areas until bare.

Fig 3: Identifying Outer Side Member (Front Section)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

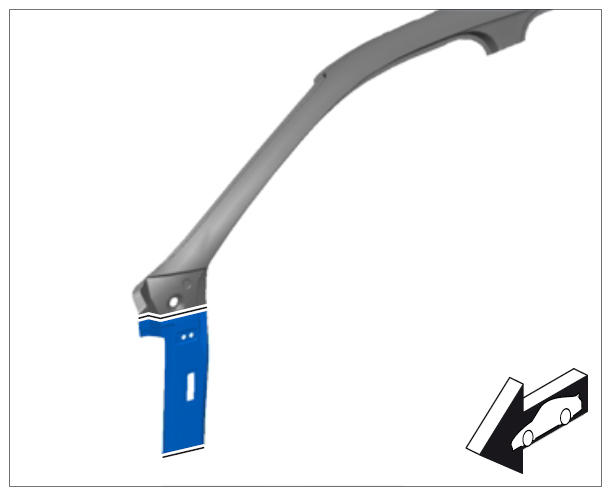

Cut A-pillar at the transition to the body (A-pillar) leaving an overlap of 30 mm.

Fig 4: Identifying A-Pillar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

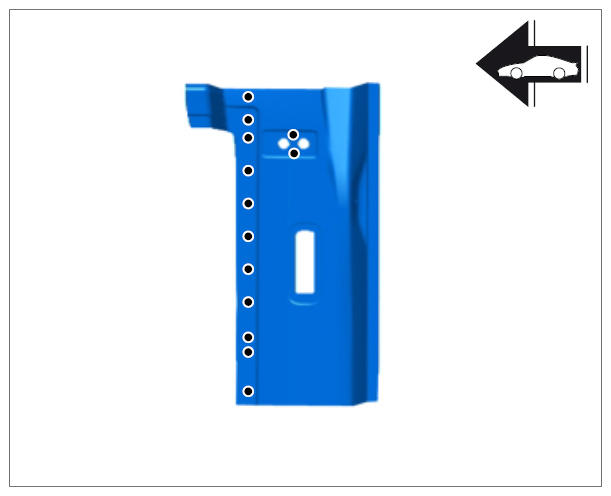

Punch holes (Ø 8 mm) for plug welding using inert gas. Maintain spacing between holes as on the old part.

Fig 5: Identifying Punch Hole On Plug Welding A-Pillar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

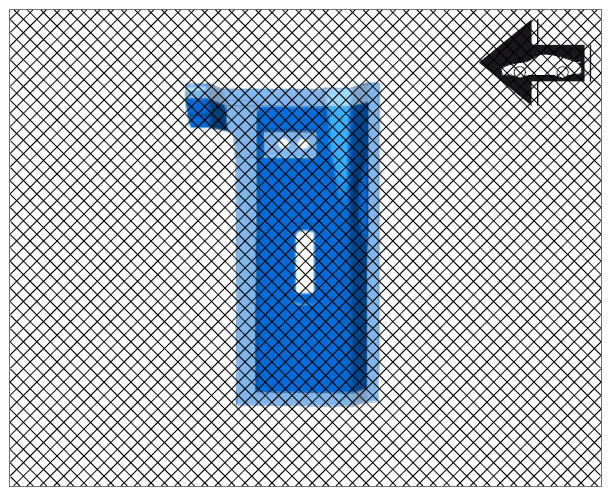

Grind both sides of connecting flanges of A-pillar in the marked areas until bare.

Fig 6: Identifying Connecting Flanges A-Pillar Punch Hole
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

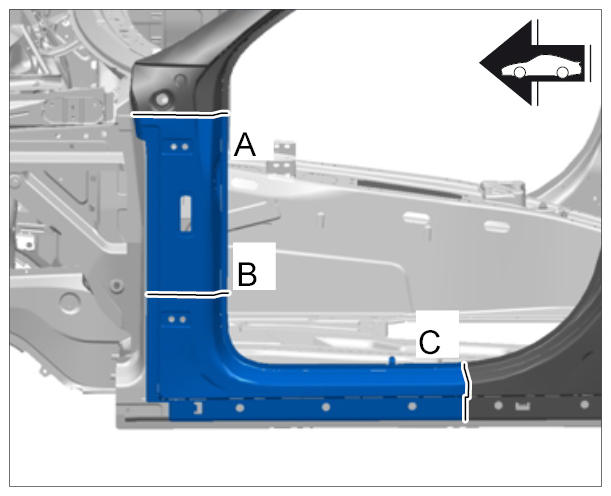

Fit outer side member and A-pillar.
1. 7.1. Fit outer side member.
2. 7.2. Fit the A-pillar.
3. 7.3. In the area -A, B, C- of the overlaps, make cut through outer side member and A-pillar.
  Observe gap dimensions. → 5X00IN DIAGRAM - BODY GAP DIMENSIONS

  Fig 7: Identifying A-Pillar And Outer Side Member
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove outer side member and A-pillar.
