Removing Outer Upper Side Member (Section)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit and secure outer upper side member (front section).
  2. Weld in the outer upper side member.
    1. 2.1. Resistance spot-weld the outer upper side member.
    2. 2.2. Apply a full weld to outer upper side member in the area -A-  using inert gas.
    3. 2.3. Spot-weld outer upper side member using inert gas.

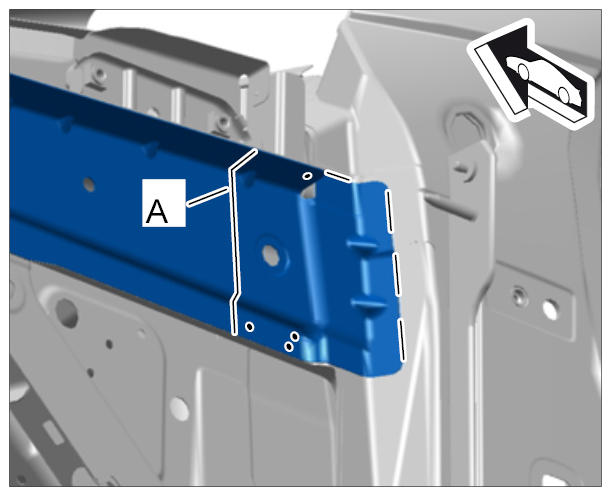

      4. Fig 1: Identifying Weld In Outer Upper Side Member
      G09938487Courtesy of PORSCHE CARS NORTH AMERICA, INC.
