Installing A-Pillar: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Apply adhesive and body sealant.
1. 1.1. Evenly apply adhesive to the marked areas.
  Working with body structural adhesive → 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE
2. 1.2. Apply body sealant all around the sealing element in the area -A- .
  Body sealant from Wurth glue and seals

  Fig 1: Identifying A-Pillar And Outer Side Member
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit and secure outer side member (front section) and A-pillar.
Observe gap dimensions. → 5X00IN DIAGRAM - BODY GAP DIMENSIONS
Weld in A-pillar and outer side member.
1. 3.1. Resistance spot-weld A-pillar and outer side member.

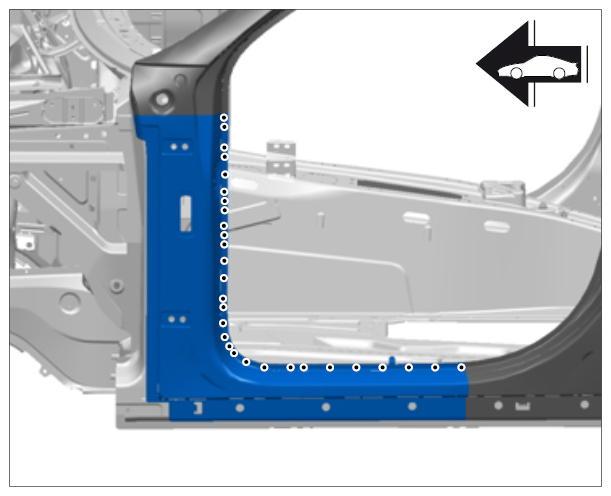

  Fig 2: Identifying Resistance Spot-Weld A-Pillar And Outer Side Member
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Plug-weld A-pillar and outer side member using inert gas.

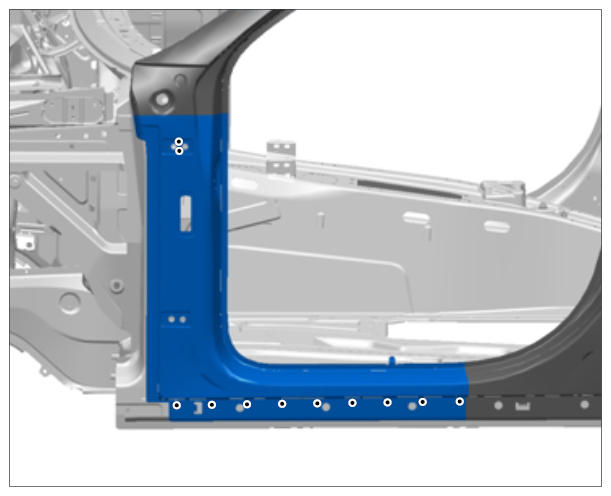

  Fig 3: Identifying Plug-Weld A-Pillar And Outer Side Member
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 3.3. Apply a full weld to A-pillar and outer side member using inert gas.

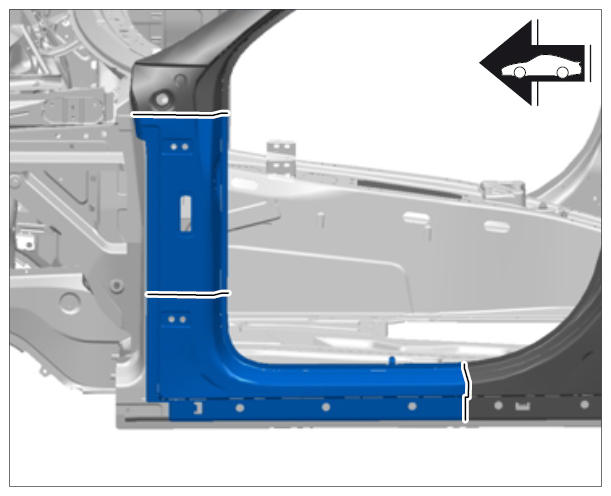

  Fig 4: Identifying A-Pillar And Outer Side Member
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
