Installing Wing Rail

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

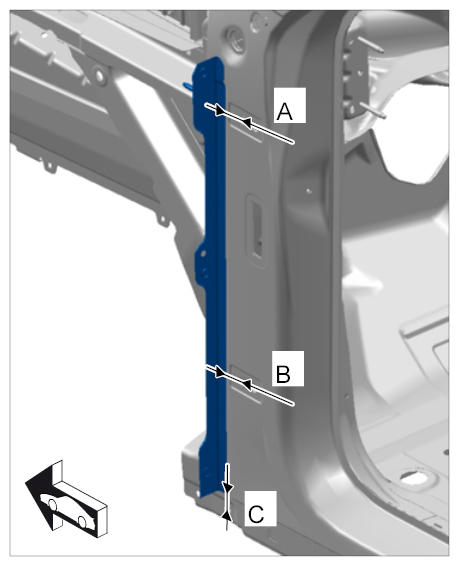

  1. Fit and secure wing rail. → Distance from hole center to rail: 40 mm → Distance from hole center to rail: 36 mm → Distance from hole center to rail: 26 mm
    Fig 1: Identifying Wing Rail
    G09938485Courtesy of PORSCHE CARS NORTH AMERICA, INC.

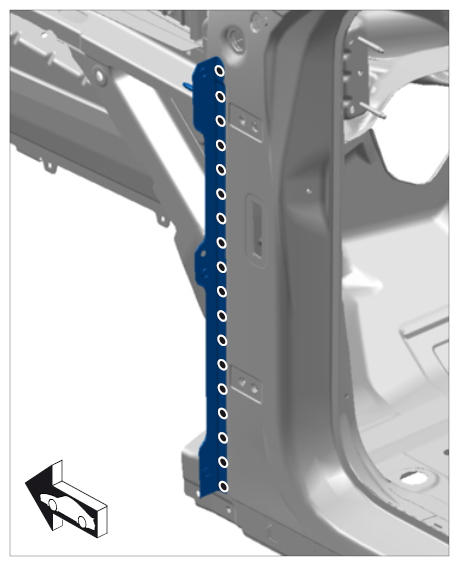

  2. Plug-weld wing rail using inert gas (two plate thicknesses).
    Fig 2: Identifying Plug-Weld Wing Rail
    G09938486Courtesy of PORSCHE CARS NORTH AMERICA, INC.
