Removing Wing Rail

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

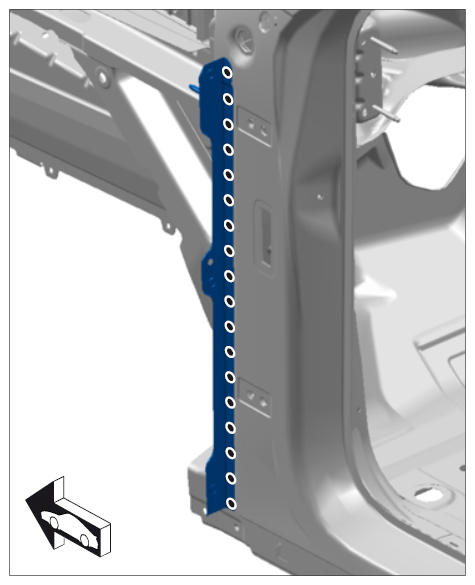

  1. Drill out spotwelds using spotweld drill bit  (two plate thicknesses).
    Fig 1: Removing Wing Rail
    G09938394Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Heat up connection areas using a hot-air gun.
    Fig 2: Removing Wing Rail
    G09938395Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove wing rail.
