Removing Outer Upper Side Member (Section)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

Mark and make cut -A- .

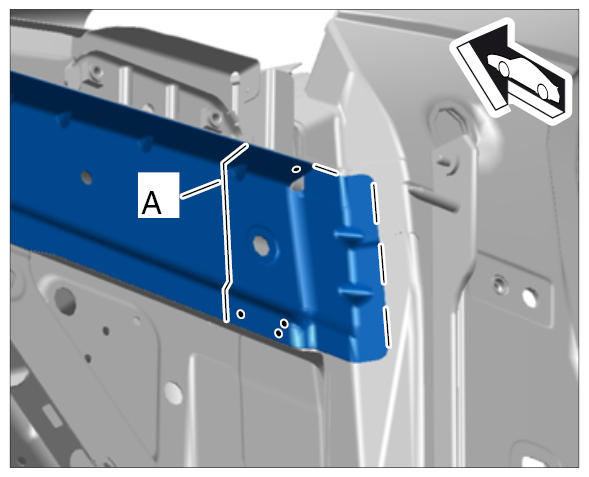

Fig 1: Outer Roof Pillar Component Location (Section)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen welded joints.
1. 2.1. Drill out spotwelds using spotweld drill .
2. 2.2. Grind down MIG seams.
Remove outer upper side member.
