Removing Inner Roof Pillar

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove outer roof pillar. → 510555 REPLACING OUTER ROOF PILLAR
Loosen welded joints.

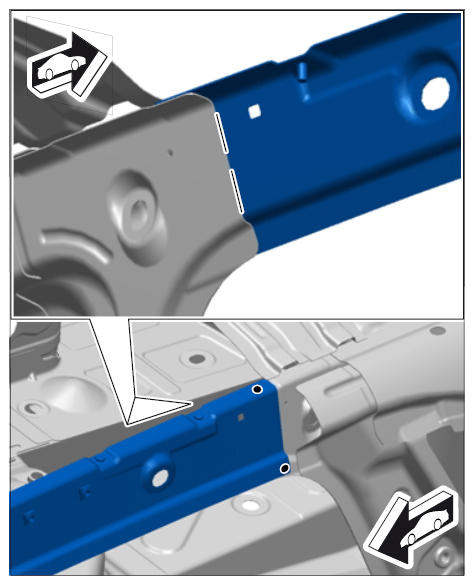

Fig 1: Inner Roof Pillar Component Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Grind down spotwelds.
2. 2.2. Grind down MIG seams.
Grind down the spotwelds.

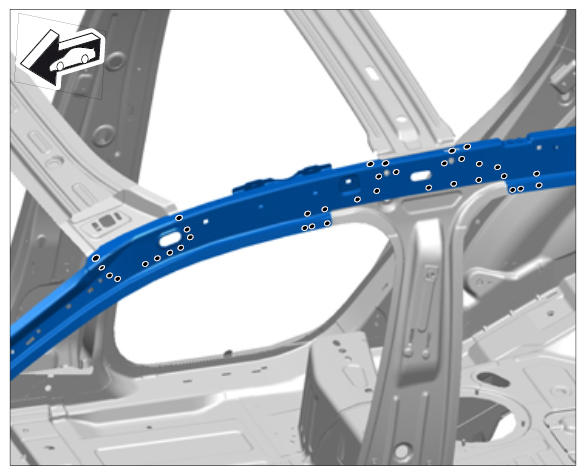

Fig 2: Removing Inner Roof Pillar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen welded joints.

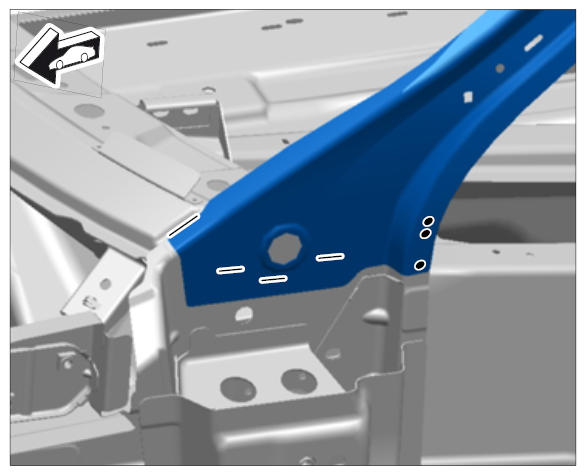

Fig 3: Removing Inner Roof Pillar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Grind down spotwelds.
2. 4.2. Grind down MIG seams.
Remove inner roof pillar.
