Preparing Inner Roof Pillar For Installation: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Procedure for grinding down slots:

10 mm
60 mm

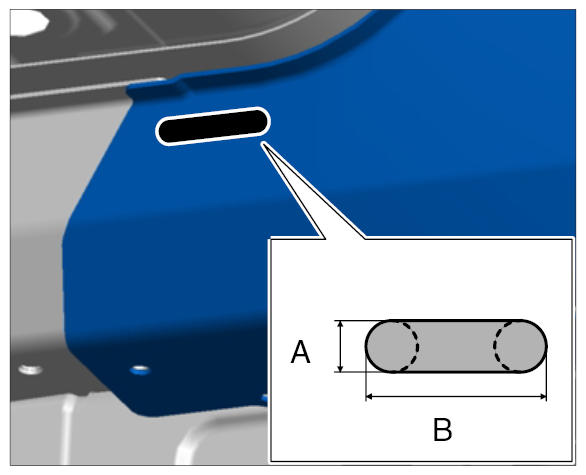

Fig 1: Identifying Grinding Down Slots
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mark slot to the dimension -A- and -B-.
Drill through the end points using a Ø 10 mm drill bit.
Grind down connecting line from hole to hole using a parting grinder.

Grind down slots for slot welding using inert gas.

Fig 2: Identifying Inner Roof Pillar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Grind both sides of connecting flanges of inner roof pillar in the marked areas until bare.

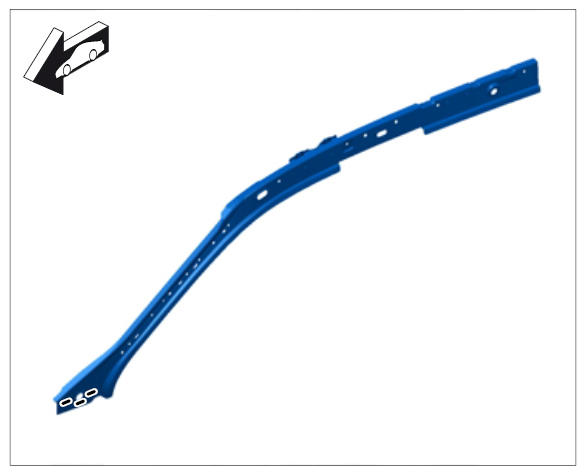

Fig 3: Identifying Inner Roof Pillar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Coat all spot-weld flange areas with zinc powder paint.
