Installing Inner Roof Pillar

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fit and secure inner roof pillar.
Weld in inner roof pillar.

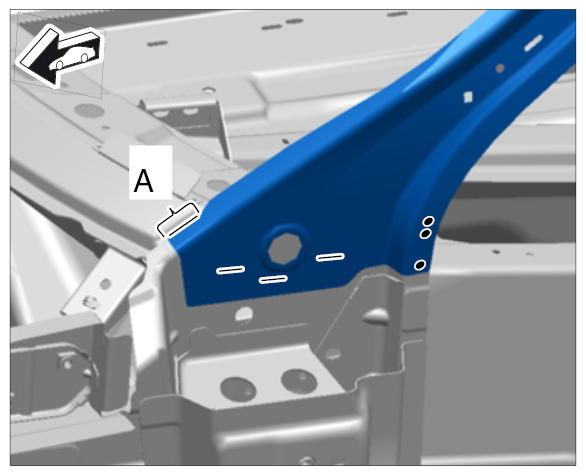

Fig 1: Installing Inner Roof Pillar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Resistance spot-weld inner roof pillar.
  Information

  When slot welding hot-formed parts, make sure that both edges of the slot are welded.

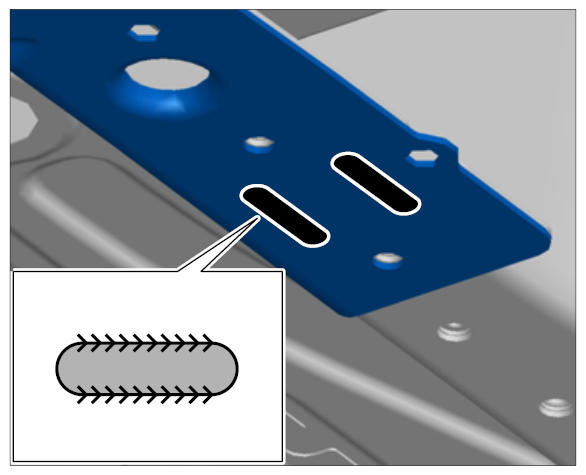

  Fig 2: Identifying Slot Welding Hot-Formed Parts
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Slot-weld inner roof pillar using inert gas.
3. 2.3. Spot-weld inner roof pillar in the area -A- using inert gas and then grind down.
Resistance spot-weld inner roof pillar.

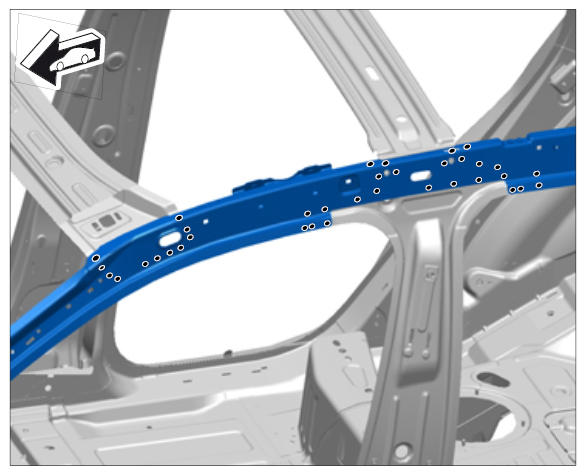

Fig 3: Identifying Resistance Spot-Weld Inner Roof Pillar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in inner roof pillar.

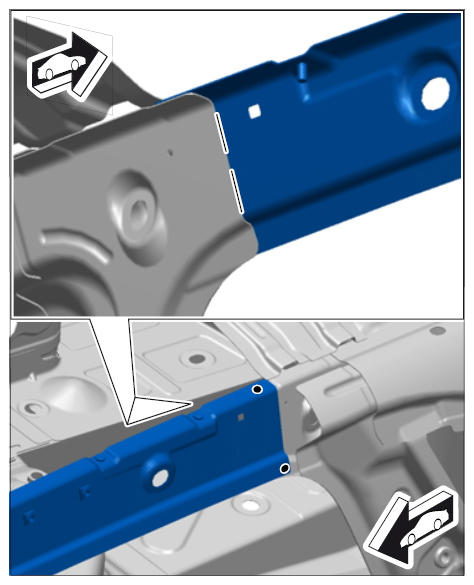

Fig 4: Identifying Weld In Inner Roof Pillar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Resistance spot-weld inner roof pillar.
2. 4.2. Spot-weld inner roof pillar using inert gas.
Install outer roof pillar. → 510555 REPLACING OUTER ROOF PILLAR
