Removing Roof

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Drill out spotwelds using spotweld drill .

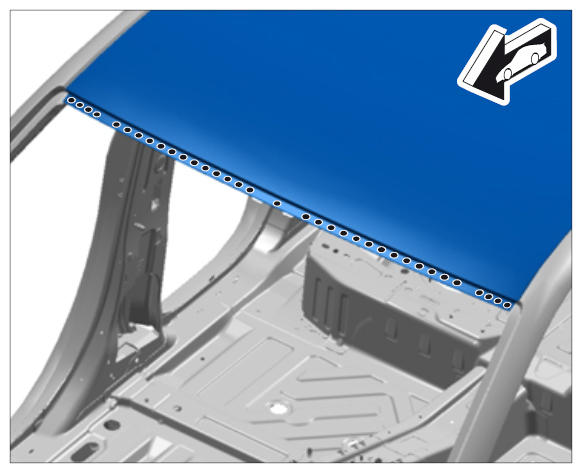

Fig 1: Roof Component Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

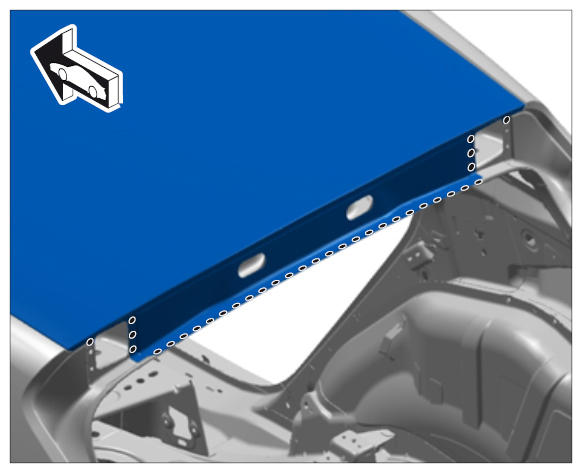

Fig 2: Identifying Roof Spotwelds Area
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

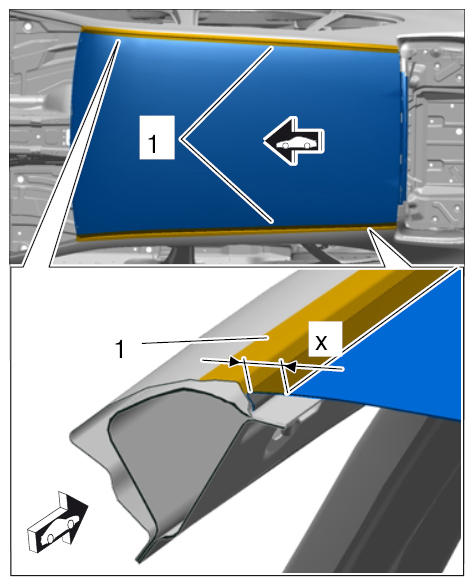

Stick on adhesive tape -1- along the edge of the roof on both sides at dimension -X- . → Distance: 2 mm+2 mm
Adhesive tape serves as cut line.

Fig 3: Removing Roof
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.
Make cut on both sides.
Heat up connection areas using the hot-air gun.

Fig 4: Identifying Roof Heat Up Connection Areas
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove roof (three people required).
Information
- During separation make sure that the components beneath are not damaged.
Remove remaining pieces of roof.

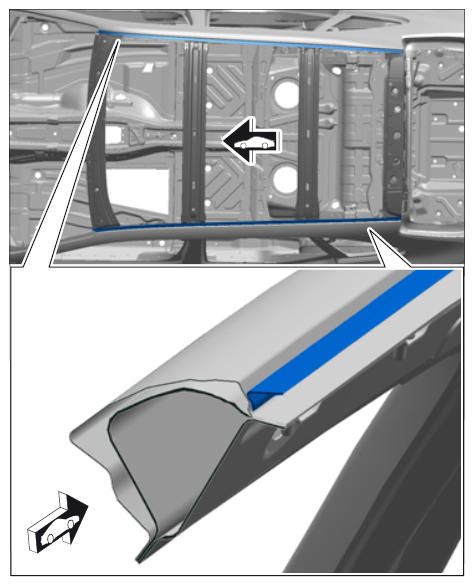

Fig 5: Removing roof
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 6.1. Cut off laser soldered joint on the side panels.
2. 6.2. Remove remaining pieces.
