Drilling Holes For Roof Rail

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

As a result of different designs (roof), it is not possible to provide a roof with hole pattern for repair work. In this case, the holes must be drilled subsequently.

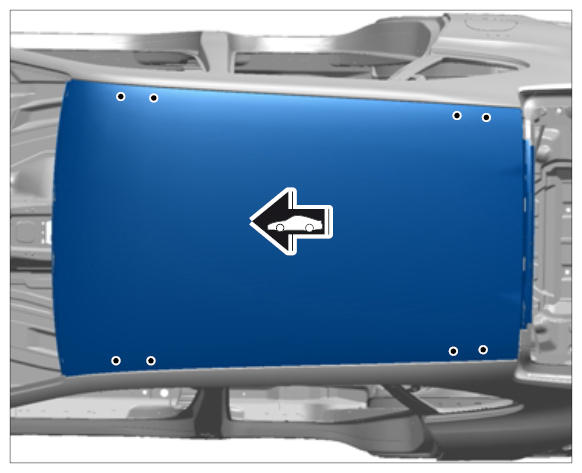

Fig 1: Identifying Hole Points For Roof Rail

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Position roof rail holder -1- on the body, align and screw down with fastening screws -2- .
Holder serves as drilling template.

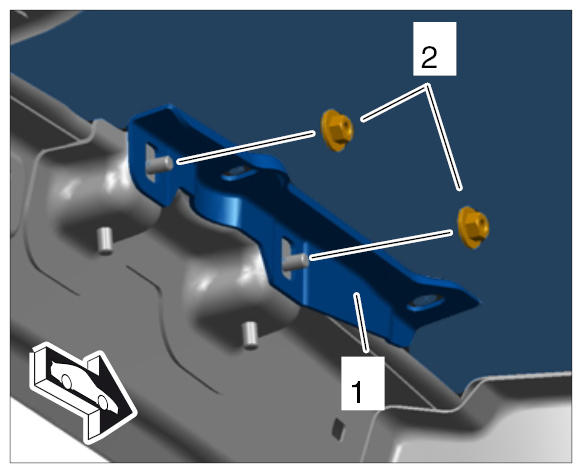

Fig 2: Identifying Roof Rail Holder On Body
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mark holes centered through the holes on the holder -arrows- and carefully drill through from the inside to the outside using a Ø 6 mm drill bit.
While drilling the holes, remove the drilling chips using a vacuum cleaner.

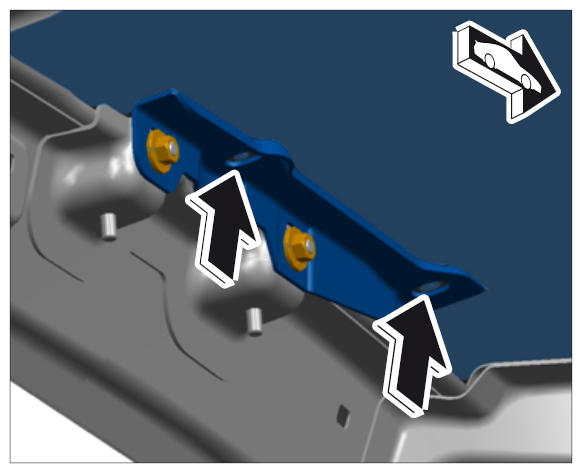

Fig 3: Identifying Drilling Holes For Roof Rail
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check hole spacing by fitting the roof rail and make adjustments if necessary.
Remove roof rail holder.
Drill out holes to the dimension -A- . → Diameter: 20 mm

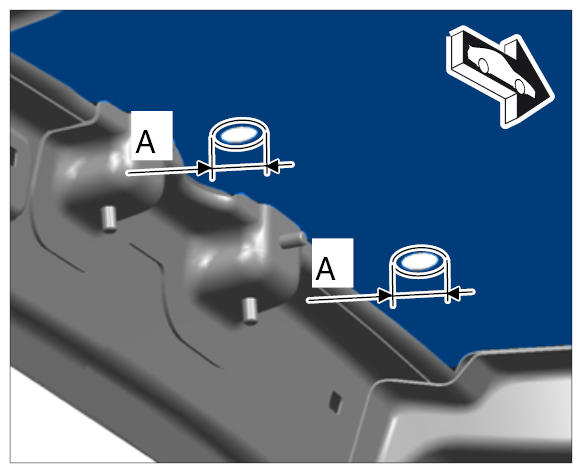

Fig 4: Identifying Drilling Holes Dimension For Roof Rail
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Apply corrosion protection.
