Removing Rear Cross Member

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

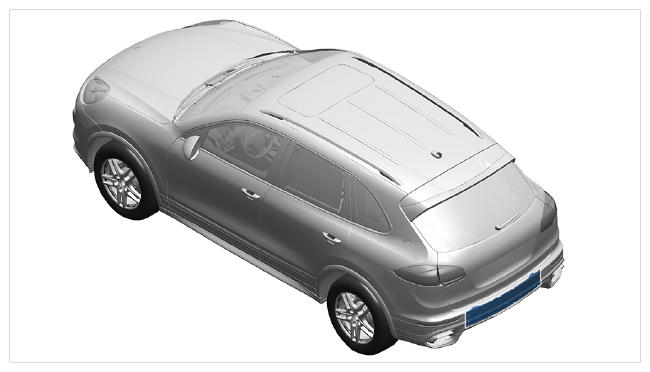

Fig 1: Rear Cross Member Component Location
G09939218Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove rear cross member.

    Information

    The screws on the rear cross member are micro-self-locking and must be replaced!

    1. 1.1. Unscrew and remove screws -1-  .

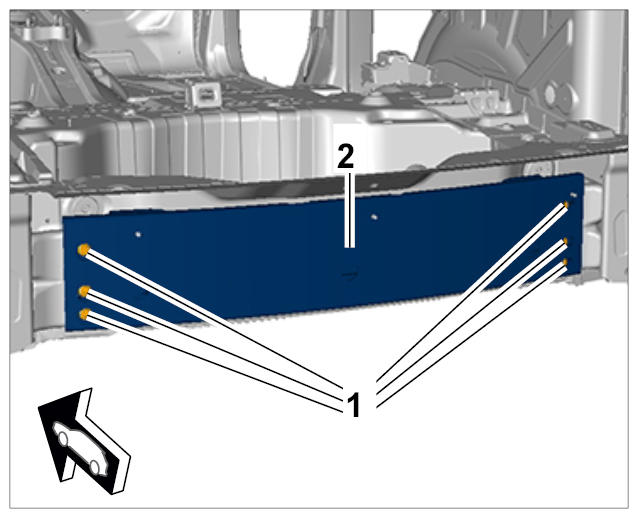

      Fig 2: Identifying Rear Cross Member With Screws
      G09939219Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 1.2. Remove rear cross member -2-  .
