Removing Spare-Wheel Well

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

All straightening work on the body in the connection area of the sheetmetal parts to be replaced must be completed before the damaged parts are removed.

Remove lock carrier. → 530955 REPLACING LOCK CARRIER - section on "Removing"
Drill out spotwelds using Spotweld Drill .

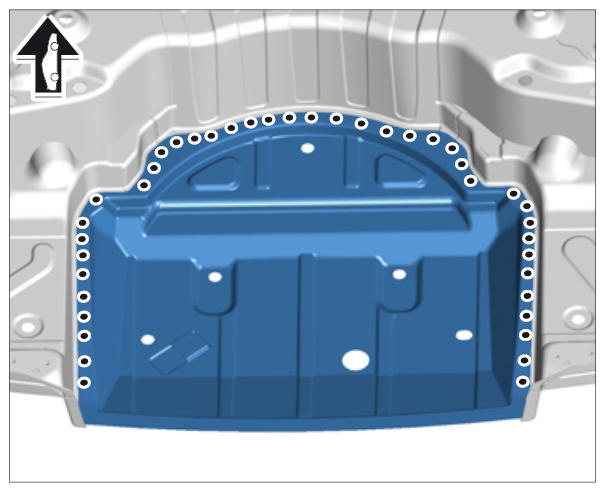

Fig 1: Spare-Wheel Well Component Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Heat up connection areas using a hot-air gun.

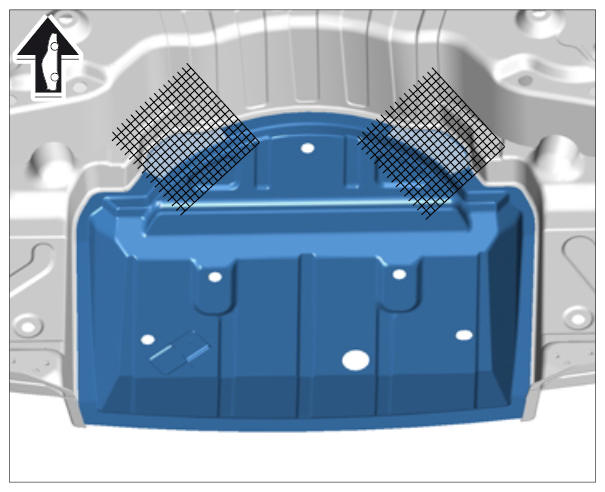

Fig 2: Identifying Spare-Wheel Well Heat Up Connection Areas
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove spare-wheel well.
