Removing Rear Wheel Housing Liner

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

Rear left wheel housing liner:

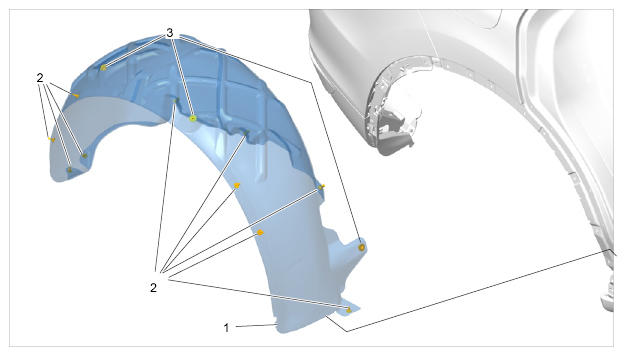

Fig 1: Rear Wheel Housing Liner Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear wheel housing liner
Fastening screws
Fastening nuts

Unscrew fastening screws -2- .
Unscrew and remove fastening nuts -3- .
Unclip and remove rear wheel housing liner -1- .
Rear right wheel housing liner:

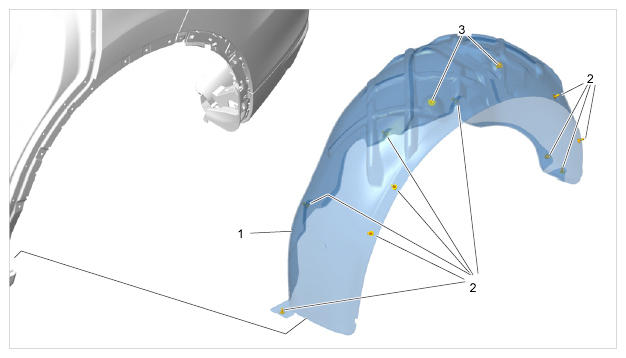

Fig 2: Identifying Rear Right Wheel Housing Liner With Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Front wheel housing liner
2. Fastening screws
3. Fastening nuts
Unscrew fastening screws -2- .
Unscrew and remove fastening nuts -3- .
Unclip and remove rear wheel housing liner -1- .
