Removing (Outer) Rear Wheel Housing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear side section. → 535555 REPLACING REAR SIDE SECTION - section on "Removing"
Remove outer side member (rear section). → 514555 REPLACING OUTER SIDE MEMBER - section on "Removing"
Loosen welded joints.

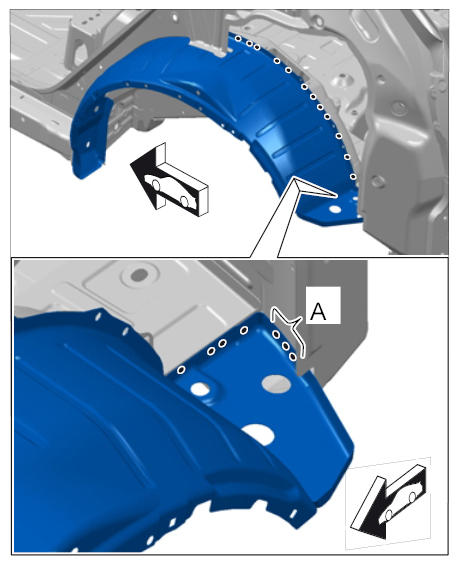

Fig 1: Rear Wheel Housing Component Location (Outer)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Drill out spotwelds using Spotweld Drill .
2. 3.2. Grind down spotwelds in the area -A- .
Loosen welded joints.

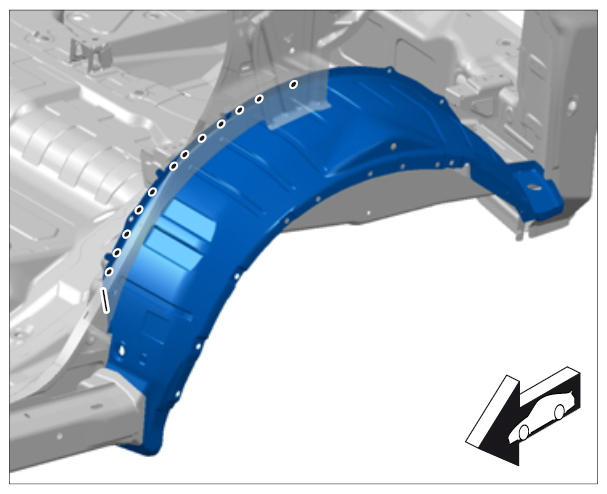

Fig 2: Identifying Rear Wheel Housing (Outer) Welded Joints
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Grind down spotwelds from outside.
2. 4.2. Grind down MIG seam.
Drill out spotwelds.

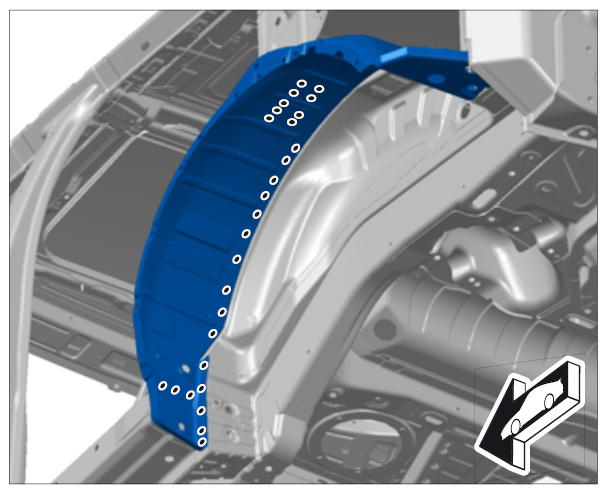

Fig 3: Identifying Rear Wheel Housing (Outer) Spotwelds
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Grind down MIG seams.

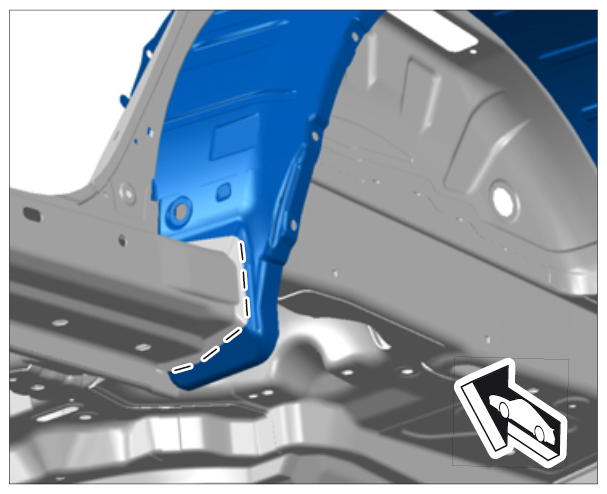

Fig 4: Identifying Rear Wheel Housing (Outer) MIG Seams
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Heat up connection areas using a hot-air gun.

Fig 5: Identifying (Outer) Rear Wheel Housing Heat Up Connection Areas
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove (outer) rear wheel housing.
