Preparing (Outer) Rear Wheel Housing For Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Drill holes for plug welding using inert gas.

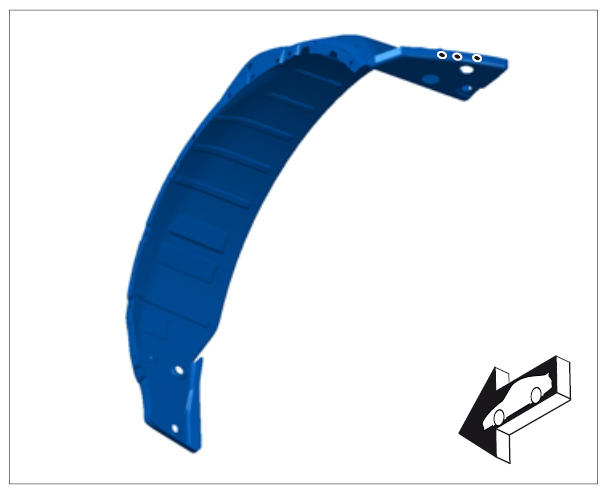

Fig 1: Identifying (Outer) Rear Wheel Housing Drill Holes For Plug Welding
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Grind both sides of connecting flanges of (outer) rear wheel housing in the marked areas until bare.

Fig 2: Identifying Connecting Flanges Of (Outer) Rear Wheel Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Do not apply zinc powder paint to the bonding areas.
Coat all spot-weld flange areas with zinc powder paint.
