Installing (Outer) Rear Wheel Housing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Apply adhesive.

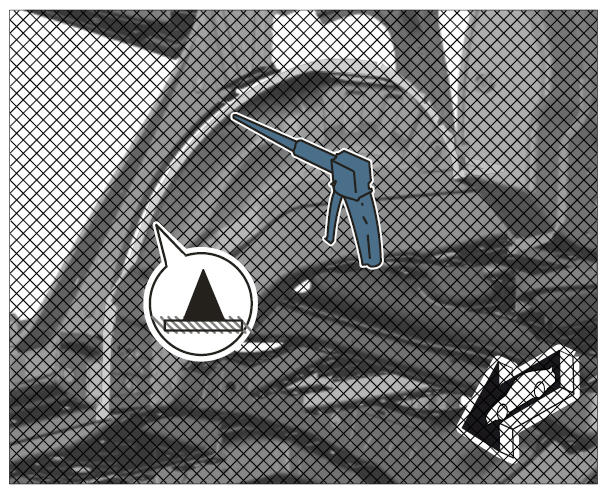

Fig 1: Applying Adhesive To (Outer) Rear Wheel Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Evenly apply adhesive to the marked areas.
  Working with body structural adhesive → 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE
Fit and secure (outer) rear wheel housing.
Resistance spot-weld the (outer) rear wheel housing.

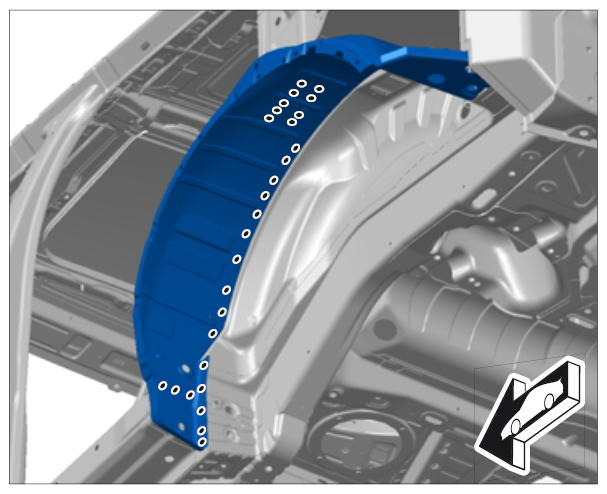

Fig 2: Identifying Resistance Spot-Weld (Outer) Rear Wheel Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in (outer) rear wheel housing.

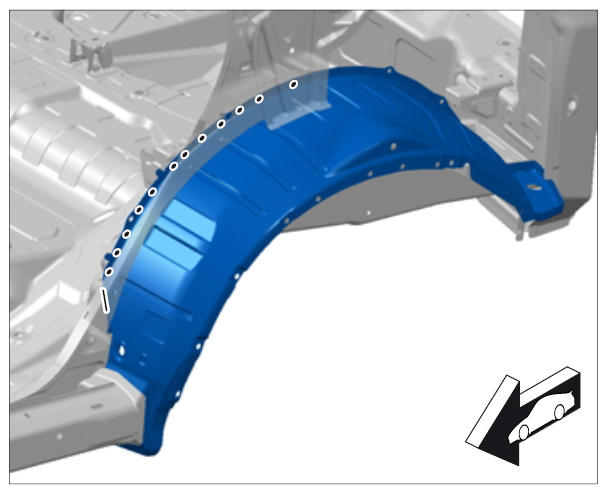

Fig 3: Identifying Weld In (Outer) Rear Wheel Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Resistance spot-weld (outer) rear wheel housing.
2. 4.2. Spot-weld (outer) rear wheel housing using inert gas.
Spot-weld (outer) rear wheel housing using inert gas.

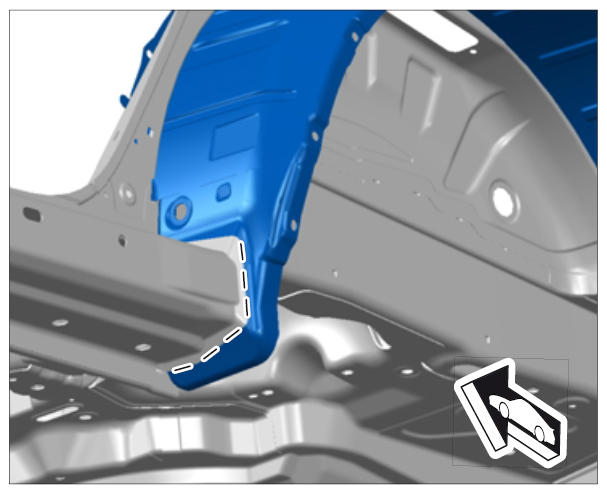

Fig 4: Identifying Spot-Weld (Outer) Rear Wheel Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in (outer) rear wheel housing.

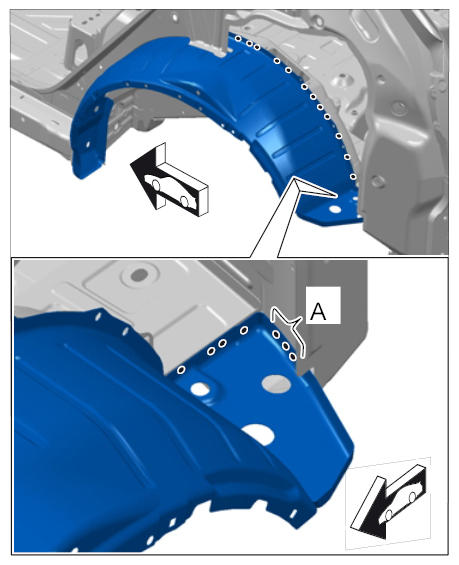

Fig 5: Identifying Weld In (Outer) Rear Wheel Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 6.1. Resistance spot-weld (outer) rear wheel housing.
2. 6.2. Plug-weld (outer) rear wheel housing in the area -A- using inert gas.
Install rear side section. → 535555 REPLACING REAR SIDE SECTION - section on "Installing"
Install outer side member (rear section). → 514555 REPLACING OUTER SIDE MEMBER - section on "Installing"
