Removing (Inner) Rear Wheel Housing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove (outer) rear wheel housing. → 536855 REPLACING (OUTER) REAR WHEEL HOUSING - section on "Removing"
Grind down MIG seams.

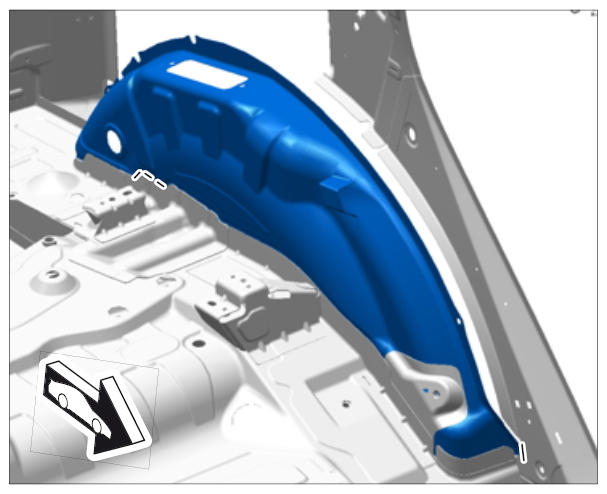

Fig 1: (Inner) Rear Wheel Housing Component Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen welded joints.

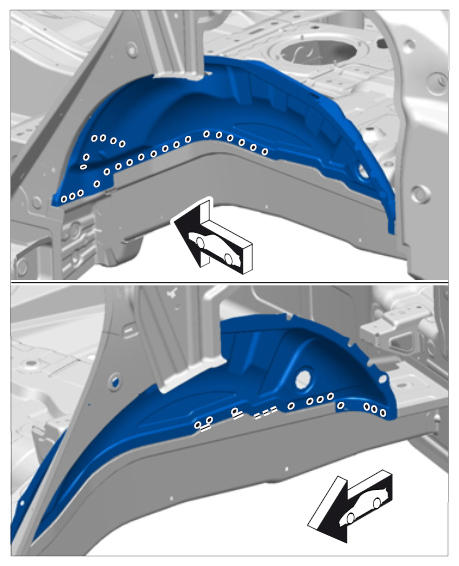

Fig 2: Identifying (Inner) Rear Wheel Housing Welded Joints
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Grind down MIG seams.
2. 3.2. Drill out spotwelds using Spotweld Drill .
Remove (inner) rear wheel housing.
